ADM1062ASUZ-REEL7 - Analog Devices

Description: Super Sequencer® with Margining Control and Temperature Monitoring

Download ADM1062ASUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

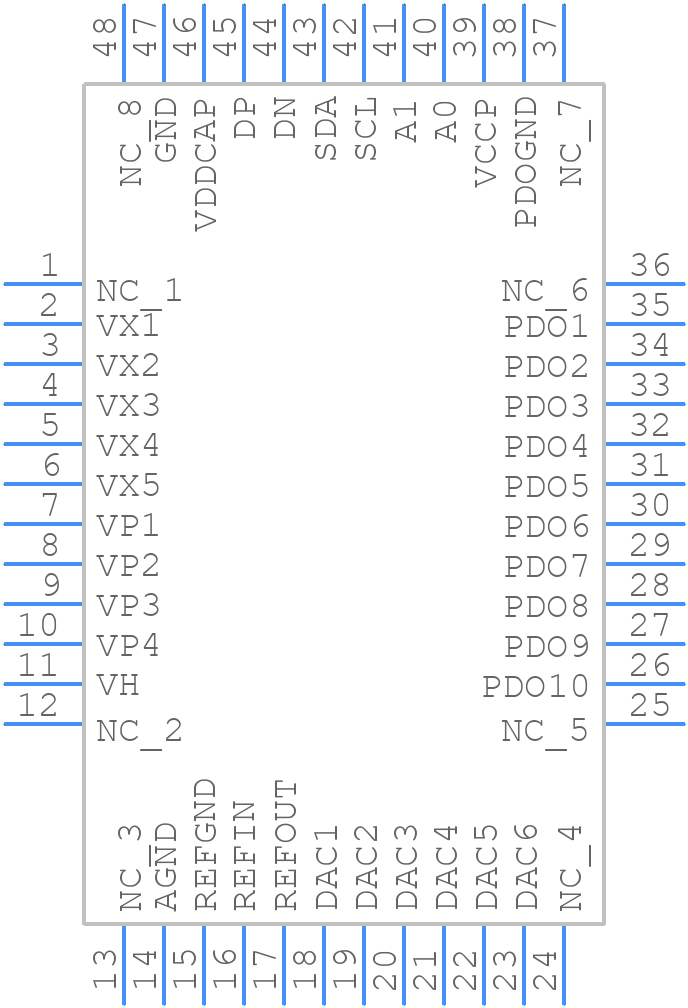

ADM1062ASUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1062ASUZ-REEL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ADM1062ASUZ-REEL7aa
click to zoom
3D Models
ADM1062ASUZ-REEL7 - Analog Devices - 3D model - Quad Flat Packages - ADM1062ASUZ-REEL7aa
click to zoom

ADM1062ASUZ-REEL7 Details

  • Manufacturer Part Number:

    ADM1062ASUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADM1062ASUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1062ASUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1062ASUZ-REEL7 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized.
  • The recommended clock frequency for the ADM1062ASUZ-REEL7 is between 10 MHz to 100 MHz. The clock signal quality should have a low jitter of less than 100 ps and a signal amplitude of at least 1.5V.
  • The ADM1062ASUZ-REEL7 has several configuration options that can be set through the SPI interface. The optimal configuration depends on the specific application requirements. It's recommended to consult the datasheet and application notes for guidance on configuring the device for optimal performance.
  • The ADM1062ASUZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1062ASUZ-REEL7 Overview

Use the download button to access the ADM1062ASUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
