ADM1063ASUZ - Analog Devices

Description: Analog Devices ADM1063ASUZ, 10-channel Voltage Supervisor, -5 → +24 V, Reset Input, 48-Pin TQFP

Download ADM1063ASUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

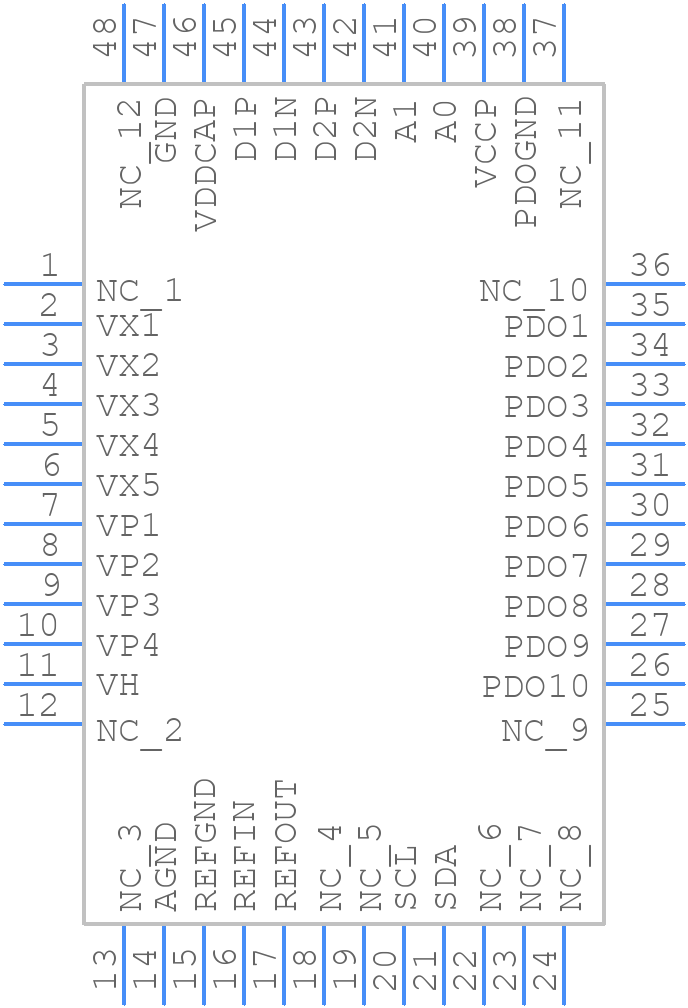

ADM1063ASUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1063ASUZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-48 (TQFP)
click to zoom
3D Models
ADM1063ASUZ - Analog Devices - 3D model - Quad Flat Packages - SU-48 (TQFP)
click to zoom

ADM1063ASUZ Details

  • Manufacturer Part Number:

    ADM1063ASUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, LEAD FREE, MS-026ABC, TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01
