ADM1064ASUZ - Analog Devices

Description: ADM1064ASUZ, Voltage Supervisor 10-channel 0.573V Super Sequencer 48-Pin TQFP

Download ADM1064ASUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

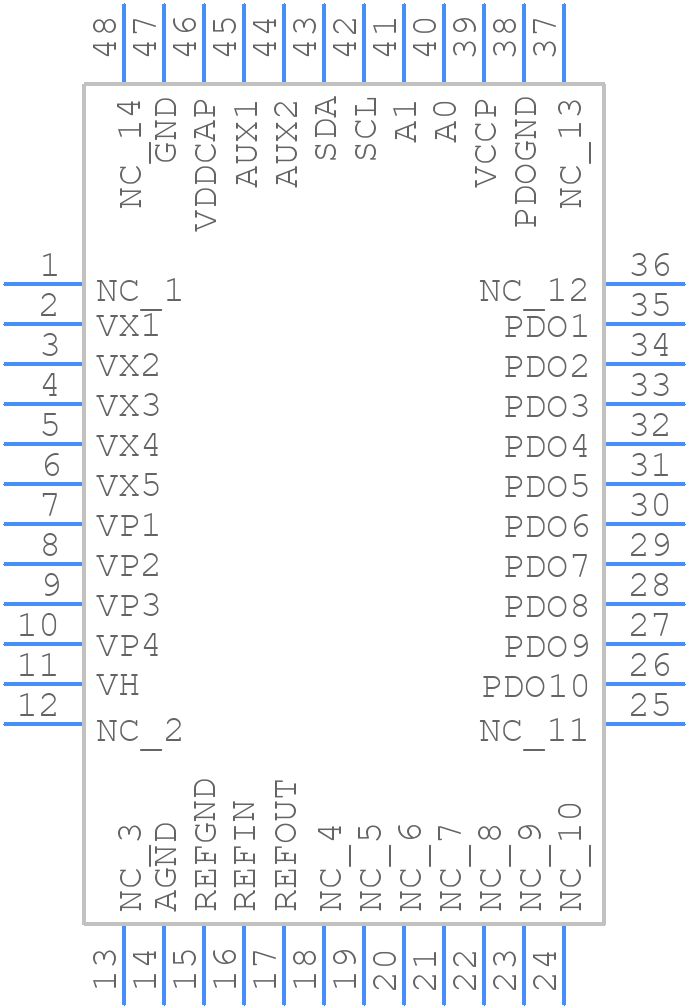

ADM1064ASUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1064ASUZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-48 (TQFP)
click to zoom
3D Models
ADM1064ASUZ - Analog Devices - 3D model - Quad Flat Packages - SU-48 (TQFP)
click to zoom

ADM1064ASUZ Details

  • Manufacturer Part Number:

    ADM1064ASUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

ADM1064ASUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, direct traces for the input and output signals, and avoid routing signals under the device.
  • The ADM1064ASUZ requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it is recommended to power up the device after the power supply has stabilized.
  • The recommended input signal range is 0V to 2.5V, and the input impedance is 10kΩ. Ensure that the input signal is within the specified range to avoid signal distortion and ensure accurate measurements.
  • The ADM1064ASUZ does not require calibration. The device is factory-calibrated and does not have any adjustable parameters. However, it is recommended to perform a system-level calibration to ensure accurate measurements.
  • The ADM1064ASUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments.
