ADM1066ACPZ - Analog Devices

Description: Analog Devices ADM1066ACPZ, 10-Channel Voltage Supervisor 1.375V max. , WDT, Reset Input 40-Pin, LFCSP

Download ADM1066ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

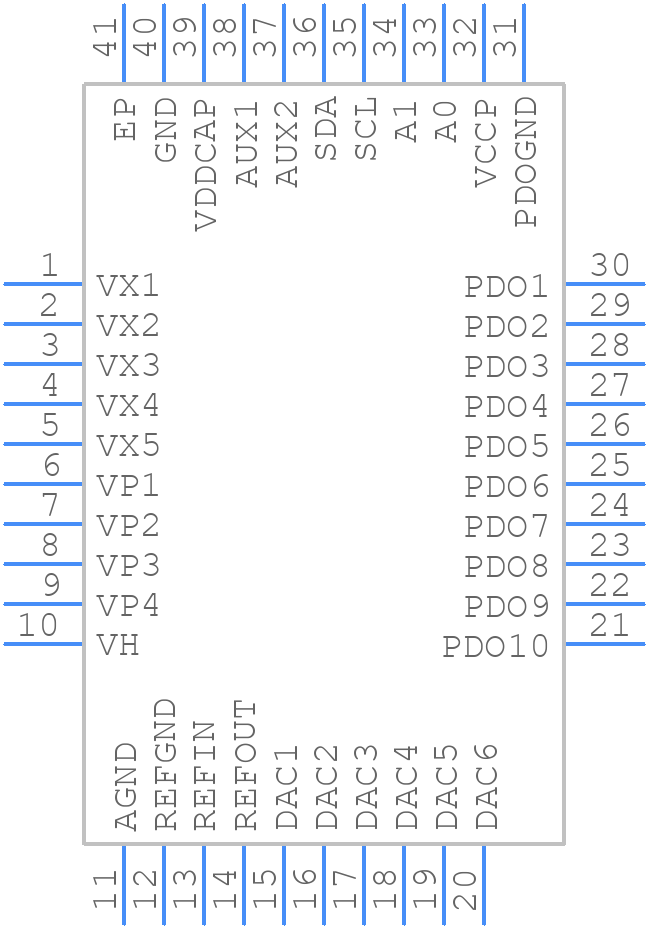

Symbol
ADM1066ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1066ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9
click to zoom
3D Models
ADM1066ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9
click to zoom

ADM1066ACPZ Details

  • Manufacturer Part Number:

    ADM1066ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, LEAD FREE, MO-220VJJD-2, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADM1066ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1066ACPZ involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consult with Analog Devices' support team if necessary. Also, use the ADM1066ACPZ evaluation board to test and validate your design before moving to production.
  • The ADM1066ACPZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and follow proper thermal design guidelines to prevent overheating.
  • Yes, the ADM1066ACPZ is suitable for high-reliability and safety-critical applications. However, it's essential to follow Analog Devices' guidelines for reliability and safety, and to consult with their support team to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADM1066ACPZ, start by reviewing the datasheet and application notes, and checking the device's configuration and PCB layout. Use debugging tools and oscilloscopes to identify the root cause of the issue, and consult with Analog Devices' support team if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1066ACPZ Overview

Use the download button to access the ADM1066ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
