ADM1068ASTZ-REEL7 - Analog Devices

Description: Supervisory Circuits Programmable Supervisor Sequencer I.C.

Download ADM1068ASTZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

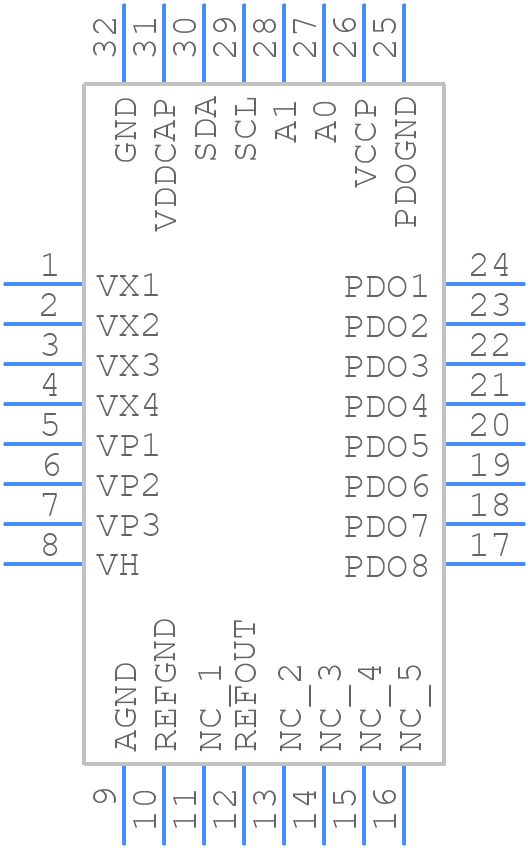

ADM1068ASTZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1068ASTZ-REEL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-32-2
click to zoom
3D Models
ADM1068ASTZ-REEL7 - Analog Devices - 3D model - Quad Flat Packages - ST-32-2
click to zoom

ADM1068ASTZ-REEL7 Details

  • Manufacturer Part Number:

    ADM1068ASTZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, MS-026BBA, LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    ST-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADM1068ASTZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1068ASTZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1068ASTZ-REEL7 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized.
  • The ADM1068ASTZ-REEL7 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, it's recommended to use a heat sink or a thermal management system to keep the device temperature within the recommended operating range.
  • To troubleshoot common issues with the ADM1068ASTZ-REEL7, first check the power supply voltage and ensure it's within the recommended range. Then, verify that the device is properly configured and that the communication protocol is correctly implemented. Use a logic analyzer or an oscilloscope to debug the communication signals and identify any errors. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • To minimize electromagnetic interference (EMI) and radio-frequency interference (RFI) with the ADM1068ASTZ-REEL7, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the output. Additionally, use a PCB layout that minimizes loop areas and keeps the analog and digital signals separate.
