ADM1068ASTZ - Analog Devices

Description: Analog Devices ADM1068ASTZ, Voltage Supervisor, 3 → 14.4 V, 3 → 6 V, WDT, Reset Input, 32-Pin LQFP

Download ADM1068ASTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

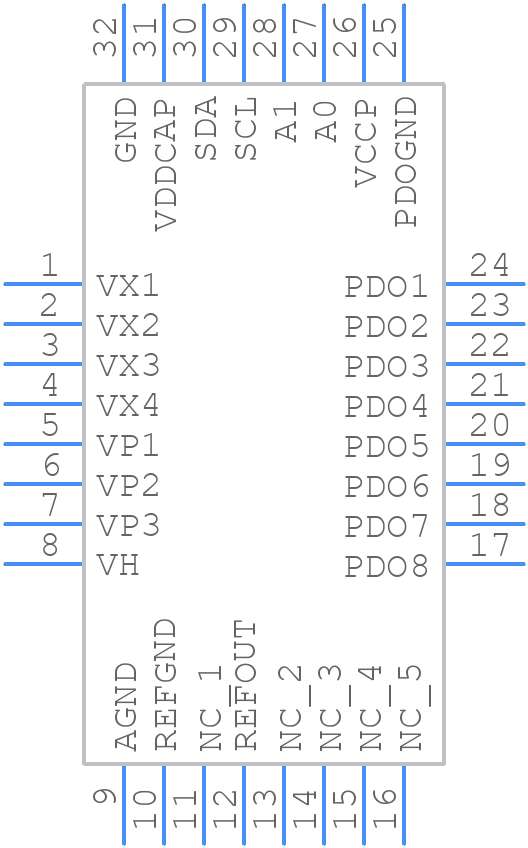

ADM1068ASTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1068ASTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-Lead Low Profile Quad Flat Package [LQFP] (ST-32-2)
click to zoom
3D Models
ADM1068ASTZ - Analog Devices - 3D model - Quad Flat Packages - 32-Lead Low Profile Quad Flat Package [LQFP] (ST-32-2)
click to zoom

ADM1068ASTZ Details

  • Manufacturer Part Number:

    ADM1068ASTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, MS-026BBA, LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    ST-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADM1068ASTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1068ASTZ involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1068ASTZ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device with the analog supply (VCC) before the digital supply (VDD).
  • The recommended clock frequency for the ADM1068ASTZ is 25 MHz, and the clock signal quality should have a low jitter (less than 100 ps) and a stable frequency to ensure accurate conversions.
  • To optimize the performance of the ADM1068ASTZ, it's recommended to use a low-noise power supply, minimize the distance between the device and the analog signal sources, use a shielded cable for the analog inputs, and use a low-pass filter to remove high-frequency noise.
  • The recommended interface protocol for communicating with the ADM1068ASTZ is a 3-wire SPI interface, with a clock frequency of up to 10 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1068ASTZ Overview

Use the download button to access the ADM1068ASTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
