ADM1075-1ACPZ - Analog Devices

Description: Analog Devices ADM1075-1ACPZ, 1-Channel, Hot Swap Controller, Negative Voltage, 12.3 V 28-Pin, LFCSP WQ

Download ADM1075-1ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

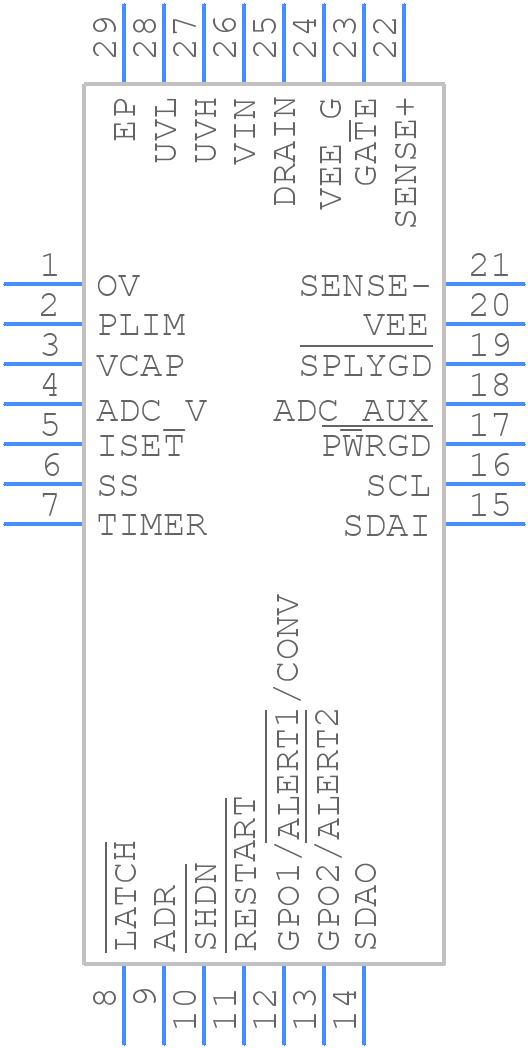

ADM1075-1ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1075-1ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-28-10
click to zoom
3D Models
ADM1075-1ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-28-10
click to zoom

ADM1075-1ACPZ Details

  • Manufacturer Part Number:

    ADM1075-1ACPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:39.691

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Nom (Vsup):

    -48 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    -35 V

  • Supply Voltage-Min (Vsup):

    -80 V

  • Supply Voltage-Nom (Vsup):

    -48 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADM1075-1ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1075-1ACPZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying power to the VCC pin first, followed by the VEE pin. Additionally, the EN pin should be tied high to enable the device. It's also important to ensure that the input voltage is within the recommended range and that the device is properly configured through the SDA and SCL pins.
  • The ADM1075-1ACPZ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial and automotive systems.
  • To troubleshoot issues with the ADM1075-1ACPZ, it's recommended to follow a systematic approach, which involves checking the power supply, input signals, and output signals. Additionally, using a logic analyzer or oscilloscope can help identify issues with the I2C bus or other signals. It's also important to consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the ADM1075-1ACPZ is suitable for use in high-reliability applications, including aerospace and medical devices. It's manufactured using a high-reliability process and is designed to meet the requirements of these industries. However, it's important to consult with Analog Devices Inc and follow their guidelines for using the device in these applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1075-1ACPZ Overview

Use the download button to access the ADM1075-1ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
