ADM1075-2ARUZ - Analog Devices

Description: Analog Devices ADM1075-2ARUZ, 1-Channel, Hot Swap Controller, Negative Voltage, 12.3 V 28-Pin, TSSOP

Download ADM1075-2ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

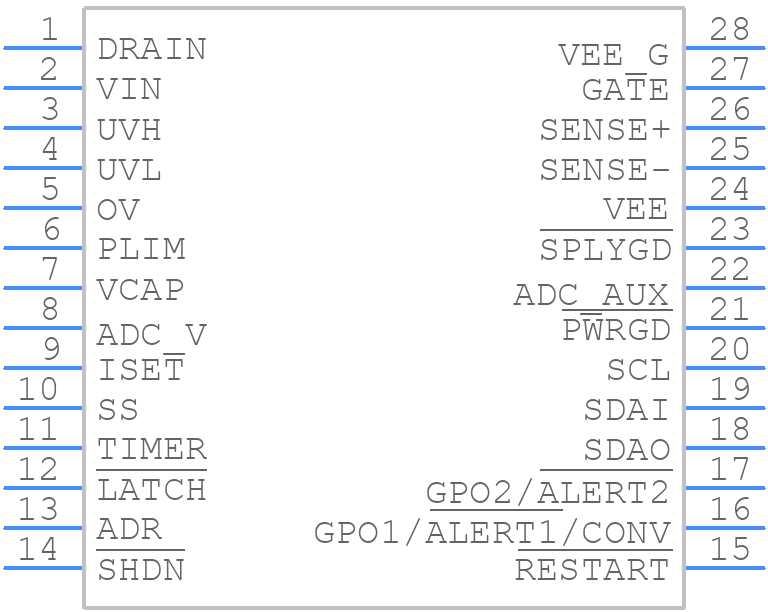

ADM1075-2ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1075-2ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-28)
click to zoom
3D Models
ADM1075-2ARUZ - Analog Devices - 3D model - Small Outline Packages - (RU-28)
click to zoom

ADM1075-2ARUZ Details

  • Manufacturer Part Number:

    ADM1075-2ARUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:39.695

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -48 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADM1075-2ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1075-2ARUZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply the power supply voltage (VCC) before applying the input voltage (VIN). Also, ensure that the EN pin is tied high or driven high after power-up to enable the device.
  • The ADM1075-2ARUZ can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage.
  • To troubleshoot issues with the ADM1075-2ARUZ, start by checking the power supply voltage, input voltage, and output voltage using an oscilloscope or multimeter. Verify that the device is properly powered up and initialized, and check for any signs of overheating or physical damage. Also, review the PCB layout and ensure that it meets the recommended guidelines.
  • The ADM1075-2ARUZ is rated for operation up to 125°C, but it's recommended to derate the output current and power dissipation at higher temperatures to ensure reliable operation. Consult the datasheet for more information on thermal derating.
