ADM1085AKSZ-REEL7 - Analog Devices

Description: Analog Devices ADM1085AKSZ-REEL7, Voltage Supervisor, 0.6 → 22 V, 6-Pin SC-70

Download ADM1085AKSZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

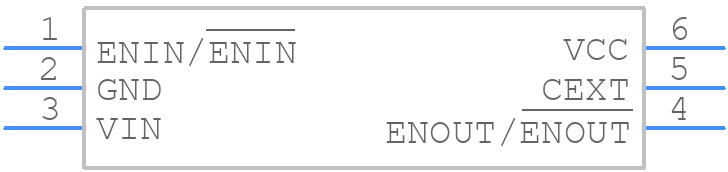

Symbol
ADM1085AKSZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1085AKSZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - ADM1085AKSZ-REEL7
click to zoom
3D Models
ADM1085AKSZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - ADM1085AKSZ-REEL7
click to zoom

ADM1085AKSZ-REEL7 Details

  • Manufacturer Part Number:

    ADM1085AKSZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-203AB, SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.015 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.25 mm

ADM1085AKSZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1085AKSZ-REEL7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the top of the device, and to ensure good airflow around the device. The PCB should also be designed to dissipate heat efficiently, and the device should be placed in a location that allows for good airflow.
  • The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 10V or higher, and the recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 10V or higher. The capacitors should be placed as close to the device as possible to minimize noise and ensure stability.
  • To troubleshoot issues with the ADM1085AKSZ-REEL7, start by checking the input voltage and current, and ensuring that the device is properly thermally managed. Check the output voltage and current, and ensure that the output capacitors are properly sized and placed. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance.
  • Yes, the ADM1085AKSZ-REEL7 is qualified for high-reliability and high-temperature applications. It is rated for operation from -40°C to 125°C, and is suitable for use in automotive, industrial, and aerospace applications. However, it's recommended to consult the datasheet and application notes for specific guidance on using the device in these applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1085AKSZ-REEL7 Overview

Use the download button to access the ADM1085AKSZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM10, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
