Part Image

ADM1166ACPZ - Analog Devices

Description: Sequencer with Margining Control

Download ADM1166ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

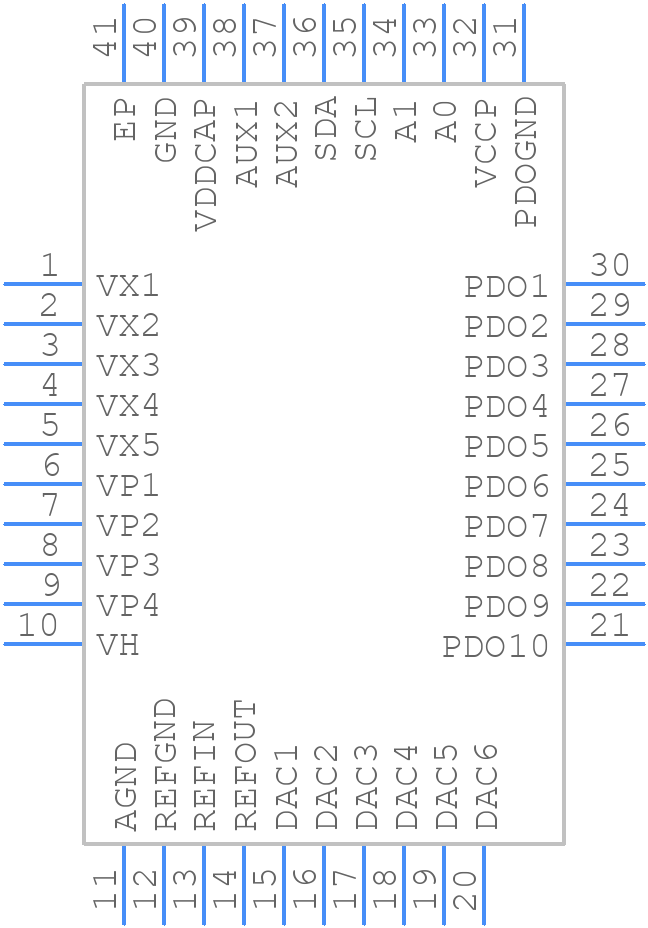

Symbol
ADM1166ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1166ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-WQ
click to zoom
3D Models
ADM1166ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-WQ
click to zoom

ADM1166ACPZ Details

  • Manufacturer Part Number:

    ADM1166ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADM1166ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1166ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the ADM1166ACPZ is properly configured for your specific application, you should carefully review the datasheet and application notes, and consult with Analog Devices' technical support team if necessary. You should also consider factors such as the input voltage range, output voltage range, and desired accuracy and resolution.
  • Some common pitfalls to avoid when designing with the ADM1166ACPZ include not following proper PCB layout guidelines, not providing adequate power supply decoupling, and not accounting for thermal considerations. Additionally, not properly configuring the device for the specific application and not following the recommended operating conditions can also lead to poor performance or device failure.
  • To troubleshoot issues with the ADM1166ACPZ, start by reviewing the datasheet and application notes to ensure the device is properly configured and operating within the recommended conditions. Check the power supply voltage, input signals, and output signals to ensure they are within the specified ranges. Use oscilloscopes and other diagnostic tools to identify the source of the issue, and consult with Analog Devices' technical support team if necessary.
  • The ADM1166ACPZ is a high-precision, low-power, 16-bit analog-to-digital converter (ADC) that is suitable for a wide range of applications, including industrial automation, medical devices, and consumer electronics. It is particularly well-suited for applications that require high accuracy, low power consumption, and small form factor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1166ACPZ Overview

Use the download button to access the ADM1166ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM11, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
