ADM1166ASUZ-REEL - Analog Devices

Description: Power Supply Controller Power Supply Monitor, Sequencer 48-TQFP (7x7) , 3V ~ 14.4V , 4.2mA , -40°C ~ 85°C

Download ADM1166ASUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

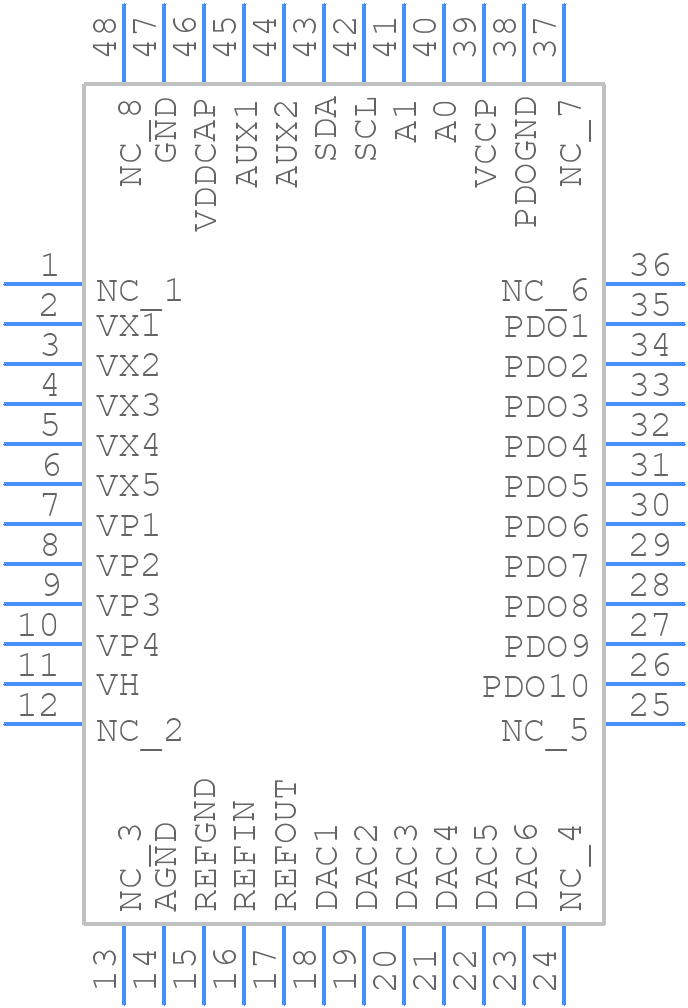

ADM1166ASUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1166ASUZ-REEL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-48 (TQFP)
click to zoom
3D Models
ADM1166ASUZ-REEL - Analog Devices - 3D model - Quad Flat Packages - SU-48 (TQFP)
click to zoom

ADM1166ASUZ-REEL Details

  • Manufacturer Part Number:

    ADM1166ASUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, MS-026ABC, TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADM1166ASUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADM1166ASUZ-REEL can be found in the application note AN-1369 from Analog Devices, which provides guidelines for PCB layout, thermal management, and component placement to ensure optimal performance and reliability.
  • The ADM1166ASUZ-REEL is a highly configurable device, and the configuration depends on the specific voltage monitoring application. Engineers can refer to the device's datasheet and application notes, such as AN-1368, which provides examples of configuration settings for different voltage monitoring scenarios.
  • The ADM1166ASUZ-REEL has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • To ensure EMC with the ADM1166ASUZ-REEL, engineers should follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering techniques. Additionally, the device's datasheet provides guidelines for EMC compliance.
  • The typical power consumption of the ADM1166ASUZ-REEL is around 1.5mA, making it a low-power device suitable for battery-powered and energy-efficient applications.
