ADM1166ASUZ-REEL7 - Analog Devices

Description: Power Supply Controller Power Supply Monitor, Sequencer 48-TQFP (7x7) -40°C ~ 85°C,4.2 mA,3V ~ 14.4V

Download ADM1166ASUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

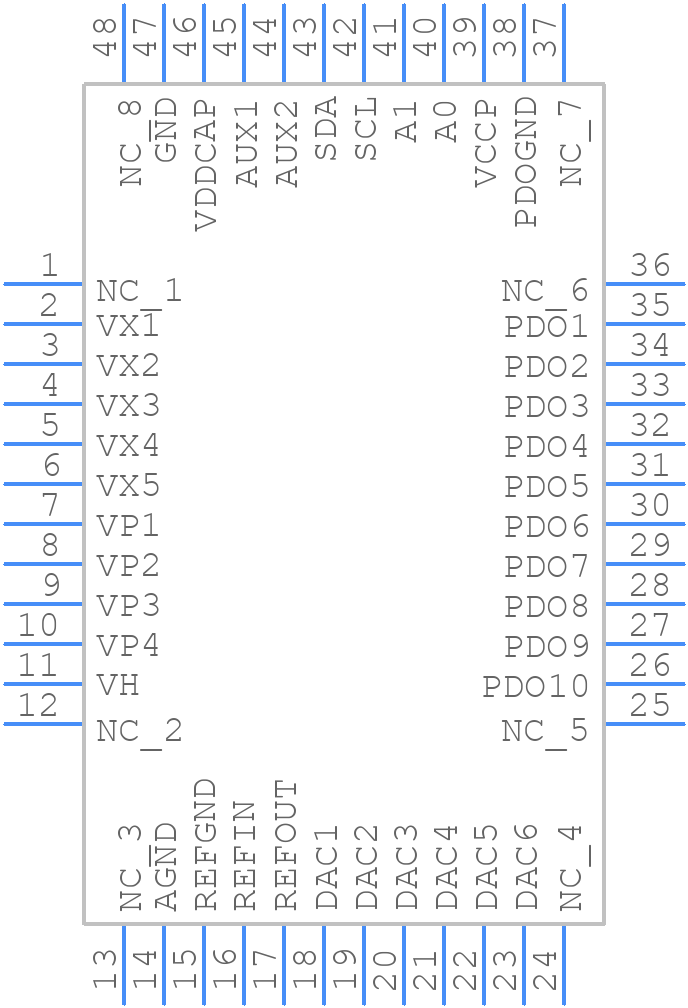

ADM1166ASUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1166ASUZ-REEL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-48
click to zoom
3D Models
ADM1166ASUZ-REEL7 - Analog Devices - 3D model - Quad Flat Packages - SU-48
click to zoom

ADM1166ASUZ-REEL7 Details

  • Manufacturer Part Number:

    ADM1166ASUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADM1166ASUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1166ASUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1166ASUZ-REEL7 requires a single 3.3V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is within the recommended operating range.
  • The ADM1166ASUZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, ensuring good airflow, and minimizing power dissipation.
  • To troubleshoot issues with the ADM1166ASUZ-REEL7, start by verifying the power supply and clock signals. Check the device's input and output signals using an oscilloscope or logic analyzer. Ensure that the device is properly configured and that the firmware is correct. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
  • The ADM1166ASUZ-REEL7 has built-in ESD protection, but it's still recommended to take precautions when handling the device. Use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Avoid touching the device's pins or exposing it to electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1166ASUZ-REEL7 Overview

Use the download button to access the ADM1166ASUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM11, or try a keyword search, such as Power Management Circuits
