ADM1166ASUZ footprint, schematic symbol and 3D model by Analog Devices

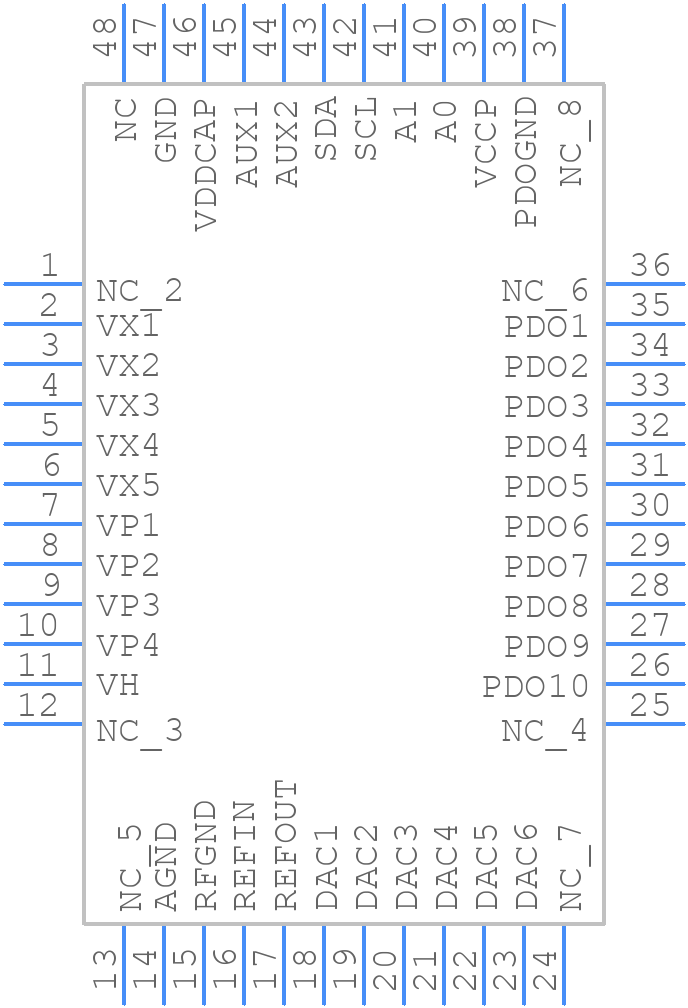

Symbol

click to zoom

PCB Footprints

ADM1166ASUZ - Analog Devices PCB footprint - Other - Other - QFP50P900X900X120-48N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADM1166ASUZ
Part Number ADM1166ASUZ
Manufacturer Analog Devices
Pin Count 48
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P900X900X120-48N
Released Date Jan 10, 2017
Last Modified Date Nov 14, 2025 4:26 PM UTC
Pinout / Pin List Click Here (Member Only)

ADM1166ASUZ Details

Manufacturer Part Number:
ADM1166ASUZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFP
Package Description:
TQFP-48
Pin Count:
48
Manufacturer Package Code:
SU-48
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Adjustable Threshold:
NO
Analog IC - Other Type:
POWER SEQUENCER
JESD-30 Code:
S-PQFP-F48
JESD-609 Code:
e3
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TFQFP
Package Equivalence Code:
SPQFP48,.24SQ,20
Package Shape:
SQUARE
Package Style:
FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
5 mA
Supply Voltage-Max (Vsup):
5.4 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
4.75 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Trim/Adjustable Output:
YES
Width:
6 mm

ADM1166ASUZ Frequently Asked Questions (FAQs)

A good PCB layout for the ADM1166ASUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and ensure optimal performance.
The ADM1166ASUZ requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirements involve powering the device after the analog power supply is stable, and ensuring that the digital power supply is powered up after the analog power supply.
A recommended decoupling capacitor configuration for the ADM1166ASUZ involves using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close to the device as possible. This helps to filter out high-frequency noise and ensure stable operation.
To configure the ADM1166ASUZ for optimal thermal performance, ensure good airflow around the device, use a thermal pad or heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is operated within the recommended temperature range.
The ADM1166ASUZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, and storing the device in an ESD-safe environment.
