ADM1169ASTZ - Analog Devices

Description: Analog Devices ADM1169ASTZ,Octal-Channel Voltage Supervisor 1.375V max., WDT, Reset Input 32-Pin, LQFP

Download ADM1169ASTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

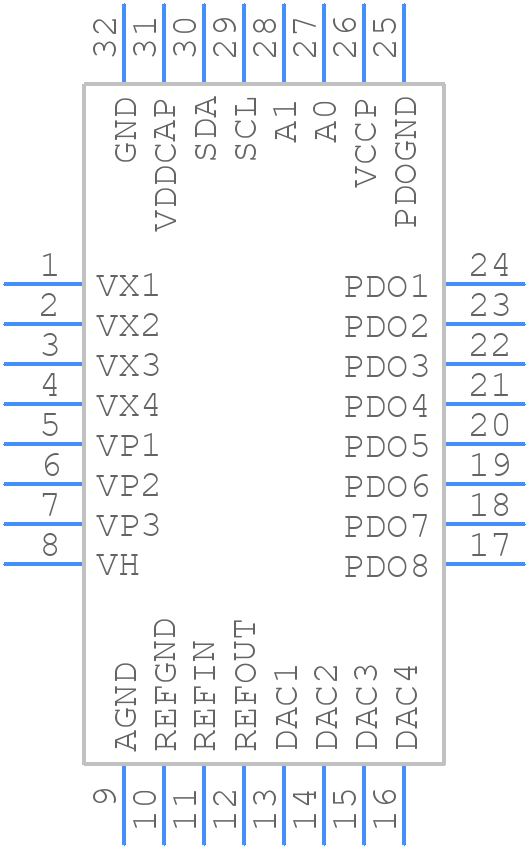

ADM1169ASTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1169ASTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-32-2
click to zoom
3D Models
ADM1169ASTZ - Analog Devices - 3D model - Quad Flat Packages - ST-32-2
click to zoom

ADM1169ASTZ Details

  • Manufacturer Part Number:

    ADM1169ASTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    ST-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADM1169ASTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1169ASTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The ADM1169ASTZ can be configured for a specific voltage monitoring application by selecting the appropriate voltage range and threshold settings using the device's internal registers. The device can be programmed using the I2C interface, and the configuration can be stored in the device's non-volatile memory. Refer to the datasheet and the device's programming guide for more information.
  • The typical response time of the ADM1169ASTZ to a voltage fault condition is around 10-20 microseconds. However, this can vary depending on the specific application and the device's configuration. The response time can be affected by factors such as the device's sampling rate, the voltage threshold settings, and the system's noise and interference levels.
  • Yes, the ADM1169ASTZ is rated for operation in high-temperature applications up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures, and the user should consult the datasheet and the device's reliability report for more information. Additionally, the user should ensure that the device is properly derated and that the system is designed to operate within the device's specified temperature range.
  • Troubleshooting issues with the ADM1169ASTZ involves checking the device's configuration and settings, verifying the power supply and voltage inputs, and checking for noise and interference in the system. The user should also consult the datasheet and the device's application notes for troubleshooting guidelines and tips. Additionally, the user can use diagnostic tools such as oscilloscopes and logic analyzers to debug the system and identify the root cause of the issue.
