ADM1171-2AUJZ-RL7 - Analog Devices

Description: ANALOG DEVICES - ADM1171-2AUJZ-RL7 - Hot Swap Controller, 2.7V to 16.5V supply, TSOT-8

Download ADM1171-2AUJZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

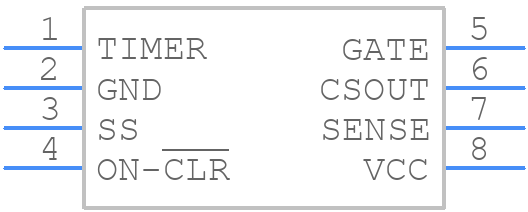

Symbol
ADM1171-2AUJZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1171-2AUJZ-RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom
3D Models
ADM1171-2AUJZ-RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom

ADM1171-2AUJZ-RL7 Details

  • Manufacturer Part Number:

    ADM1171-2AUJZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSOT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    UNDER VOLTAGE LOCKOUT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

ADM1171-2AUJZ-RL7 Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to use thermal vias to connect the exposed pad of the ADM1171-2AUJZ-RL7 to the ground plane. Additionally, keeping the PCB traces and components away from the device can help to reduce thermal resistance.
  • To ensure accurate current monitoring, it is essential to follow the recommended layout and routing guidelines for the sense resistors and to minimize the resistance of the PCB traces. Additionally, the sense resistors should be placed as close as possible to the device, and the Kelvin connection should be used to connect the sense resistors to the device.
  • The maximum allowed voltage on the SENSE pin is 2.5V. Exceeding this voltage can damage the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage on the SENSE pin to within the specified range.
  • To handle the inrush current during power-up, it is recommended to add a soft-start circuit or a current limiter to limit the inrush current. Additionally, the device can be configured to have a slower rise time for the output voltage to reduce the inrush current.
  • The recommended capacitor value for the VCC pin is 1uF to 10uF. A larger capacitor value can help to improve the noise immunity and reduce the voltage ripple on the VCC pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1171-2AUJZ-RL7 Overview

Use the download button to access the ADM1171-2AUJZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM11, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
