ADM1184ARMZ - Analog Devices

Description: ADM1184ARMZ, Voltage Supervisor 4-channel Quad Voltage Monitor 10-Pin MSOP

Download ADM1184ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

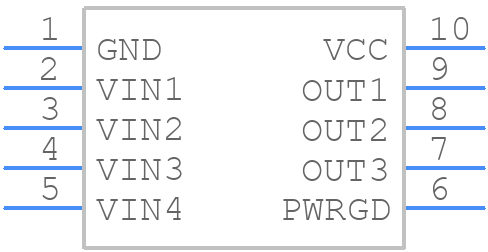

Symbol
ADM1184ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1184ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)-1
click to zoom
3D Models
ADM1184ARMZ - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)-1
click to zoom

ADM1184ARMZ Details

  • Manufacturer Part Number:

    ADM1184ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.6V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADM1184ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1184ARMZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1184ARMZ requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the input voltage has reached 2.7V, and to power down the device before the input voltage falls below 2.7V.
  • The recommended input capacitance is 10uF to 22uF, and the recommended output capacitance is 10uF to 47uF. The capacitance values can be adjusted based on the specific application requirements.
  • The ADM1184ARMZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal interface material (TIM) can be used to improve the thermal conductivity. Additionally, the device should be placed in a well-ventilated area to ensure proper airflow.
  • The ADM1184ARMZ has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. To prevent latch-up, it's recommended to use a series resistor and a clamp diode on the input lines.
