ADM1185ARMZ-1 - Analog Devices

Description: Processor Supervisor 4 Active High/Open Drain 10-Pin MSOP Tube

Download ADM1185ARMZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

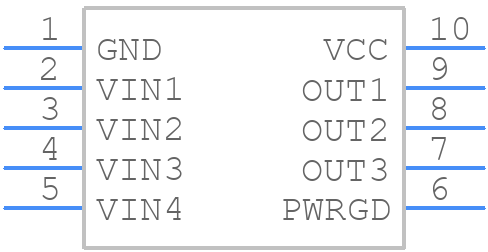

ADM1185ARMZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1185ARMZ-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)-1
click to zoom
3D Models
ADM1185ARMZ-1 - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)-1
click to zoom

ADM1185ARMZ-1 Details

  • Manufacturer Part Number:

    ADM1185ARMZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.6V

  • Width:

    3 mm

ADM1185ARMZ-1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1185ARMZ-1 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1185ARMZ-1 requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized.
  • The ADM1185ARMZ-1 can drive a maximum capacitive load of 1000 pF. Exceeding this limit may affect the device's stability and performance.
  • To troubleshoot issues with the ADM1185ARMZ-1, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly powered and that the input voltage is within the recommended range. Check for noise and oscillations on the output voltage and ensure that the device is properly decoupled. If issues persist, consult the datasheet and application notes for further guidance.
  • The ADM1185ARMZ-1 is rated for operation up to 125°C. However, the device's performance and accuracy may degrade at high temperatures. It's recommended to derate the device's performance and accuracy at high temperatures, and to consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1185ARMZ-1 Overview

Use the download button to access the ADM1185ARMZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM11, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
