ADM1186-1ARQZ - Analog Devices

Description: Analog Devices ADM1186-1ARQZ, Quad Voltage Supervisor, 2.7 → 5.5 V, 20-Pin QSOP

Download ADM1186-1ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

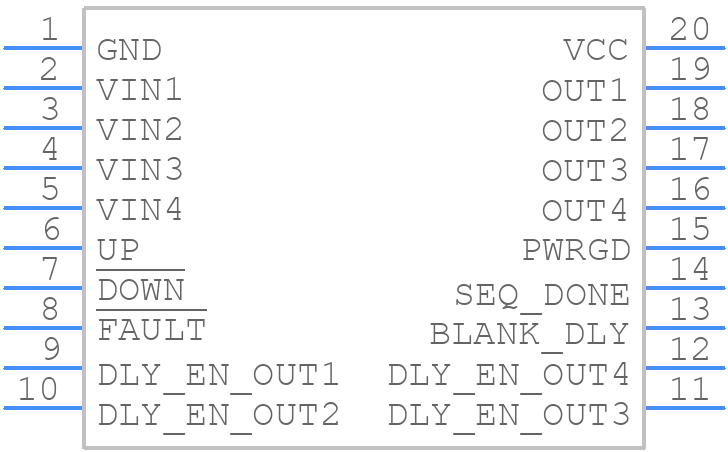

Symbol
ADM1186-1ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1186-1ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-20 (QSOP)
click to zoom
3D Models
ADM1186-1ARQZ - Analog Devices - 3D model - Small Outline Packages - RQ-20 (QSOP)
click to zoom

ADM1186-1ARQZ Details

  • Manufacturer Part Number:

    ADM1186-1ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.661 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    0.21 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.6V

  • Width:

    3.9 mm

ADM1186-1ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1186-1ARQZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1186-1ARQZ requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The ADM1186-1ARQZ can drive up to 1000 pF of capacitive load. However, it's recommended to limit the capacitive load to 100 pF or less to ensure optimal performance and stability.
  • To troubleshoot issues with the ADM1186-1ARQZ, check the power supply voltage, ensure proper PCB layout, and verify that the input voltage is within the recommended range. Also, check for any noise or interference on the input or output lines. If the issue persists, consult the datasheet and application notes for further guidance.
  • The ADM1186-1ARQZ is rated for operation up to 125°C. However, the device's performance and accuracy may degrade at high temperatures. It's recommended to derate the device's performance and accuracy at temperatures above 85°C.
