ADM1186-2ARQZ - Analog Devices

Description: Supervisory Circuits QUAD V#OLTAGE MONITOR & SEQUENCER

Download ADM1186-2ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

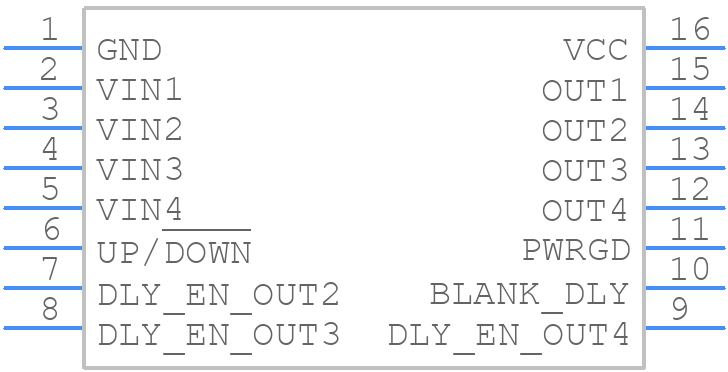

ADM1186-2ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1186-2ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)
click to zoom
3D Models
ADM1186-2ARQZ - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)
click to zoom

ADM1186-2ARQZ Details

  • Manufacturer Part Number:

    ADM1186-2ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.902 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    0.21 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM1186-2ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1186-2ARQZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM1186-2ARQZ requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The ADM1186-2ARQZ can drive a maximum capacitive load of 1000pF. Exceeding this limit may affect the device's stability and performance.
  • To troubleshoot issues with the ADM1186-2ARQZ, check the power supply voltage, ensure proper PCB layout, and verify that the input and output capacitors are properly sized. Also, check for any noise or interference on the input or output lines. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
  • The ADM1186-2ARQZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
