Part Image

ADM1293-1AACPZ - Analog Devices

Description: Analog Devices ADM1293-1AACPZ, Current Sensor, 16-Pin, LFCSP

Download ADM1293-1AACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

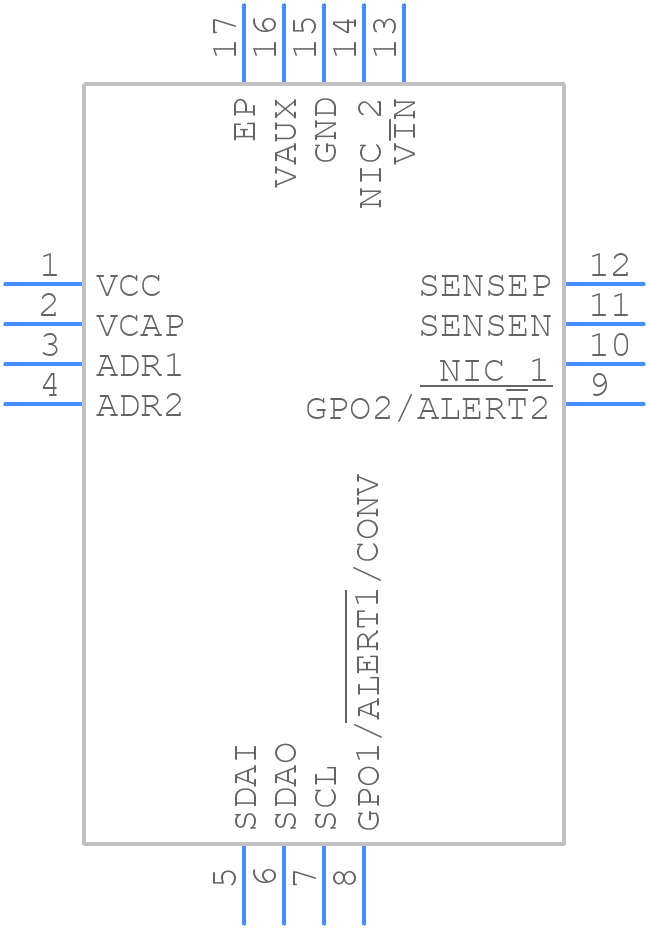

ADM1293-1AACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1293-1AACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom
3D Models
ADM1293-1AACPZ - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom

ADM1293-1AACPZ Details

  • Manufacturer Part Number:

    ADM1293-1AACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.95 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADM1293-1AACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1293-1AACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • The ADM1293-1AACPZ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is clean and free of noise.
  • The recommended clock frequency for the ADM1293-1AACPZ is 10 MHz to 40 MHz, and it's recommended to use a high-quality clock source such as a crystal oscillator or a phase-locked loop (PLL) to ensure a stable clock signal.
  • The ADM1293-1AACPZ has several configuration options that can be set through the SPI interface. It's recommended to consult the datasheet and application notes to determine the optimal configuration for your specific application, and to use the Analog Devices evaluation board and software development kit (SDK) to simplify the configuration process.
  • The ADM1293-1AACPZ has a maximum junction temperature of 150°C, and it's recommended to ensure good thermal conductivity between the device and the PCB. Additionally, it's recommended to use thermal simulation tools to ensure that the device operates within the recommended temperature range, and to consider using thermal management techniques such as heat sinks or thermal interfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1293-1AACPZ Overview

Use the download button to access the ADM1293-1AACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM12, or try a keyword search, such as Other Signal Circuits
