ADM13305-18ARZ - Analog Devices

Description: Analog Devices ADM13305-18ARZ, Voltage Supervisor, 2.7 → 5.5 V, WDT, Reset Input, 8-Pin SOIC

Download ADM13305-18ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

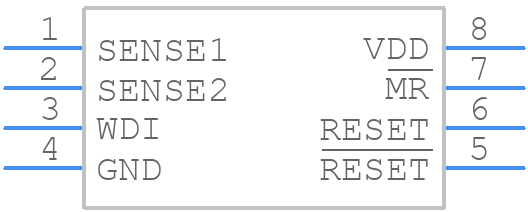

ADM13305-18ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13305-18ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADM13305-18ARZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADM13305-18ARZ Details

  • Manufacturer Part Number:

    ADM13305-18ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET INPUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    WATCHDOG TIMER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM13305-18ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM13305-18ARZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM13305-18ARZ requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized.
  • The ADM13305-18ARZ can drive a maximum capacitive load of 100pF. Exceeding this limit may affect the device's stability and performance.
  • To troubleshoot issues with the ADM13305-18ARZ, check the PCB layout for noise and signal integrity issues, ensure proper power supply decoupling, and verify that the input and output signals are within the recommended operating ranges. Also, check for any signs of overheating or physical damage to the device.
  • The ADM13305-18ARZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's operating temperature to ensure reliable operation.
