ADM13305-5ARZ - Analog Devices

Description: Analog Devices ADM13305-5ARZ, Dual Processor Supervisor 1.8 → 5 V, WDT, Reset Input, 8-Pin SOIC

Download ADM13305-5ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

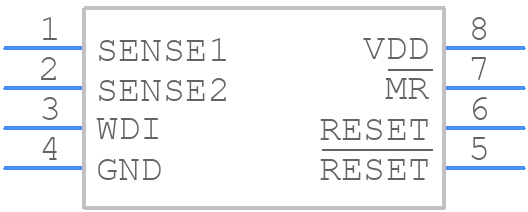

ADM13305-5ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13305-5ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADM13305-5ARZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADM13305-5ARZ Details

  • Manufacturer Part Number:

    ADM13305-5ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET INPUT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    WATCHDOG TIMER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM13305-5ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM13305-5ARZ should include a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals. The datasheet provides some general guidelines, but Analog Devices also offers a PCB layout guide (AN-772) that provides more detailed recommendations.
  • The ADM13305-5ARZ requires a specific power-up sequence to ensure proper initialization. The datasheet recommends powering up the device in the following order: VCC, VDD, and then EN. Additionally, the EN pin should be held low for at least 100 ns to ensure the device is properly reset.
  • The ADM13305-5ARZ can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 10 pF or less to ensure optimal performance and minimize ringing on the output.
  • To troubleshoot issues with the ADM13305-5ARZ, start by verifying the power-up sequence and ensuring that the device is properly initialized. Check the input voltage and current, and verify that the output voltage is within the expected range. Use an oscilloscope to check for oscillations or ringing on the output. If the issue persists, consult the datasheet and application notes for additional guidance or contact Analog Devices support.
  • The ADM13305-5ARZ is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's recommended to derate the output voltage and current at higher temperatures to ensure reliable operation. Consult the datasheet and application notes for more information on high-temperature operation.
