ADM13307-33ARZ-RL7 - Analog Devices

Description: Supervisory Circuits Triple Supervisory Circuits

Download ADM13307-33ARZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

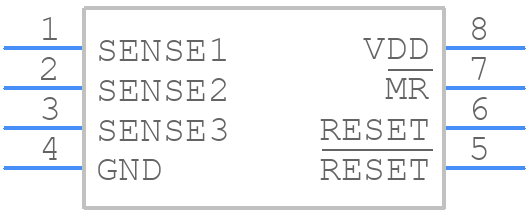

ADM13307-33ARZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13307-33ARZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADM13307-33ARZ-RL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADM13307-33ARZ-RL7 Details

  • Manufacturer Part Number:

    ADM13307-33ARZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC
