ADM13307-5ARZ - Analog Devices

Description: Analog Devices ADM13307-5ARZ, Triple Voltage Supervisor 2.93V max., Reset Input, 8-Pin SOIC

Download ADM13307-5ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

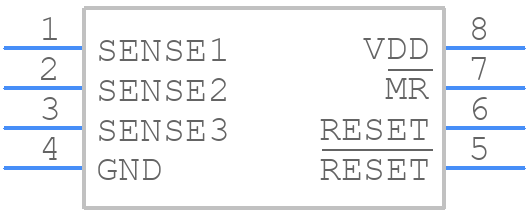

ADM13307-5ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13307-5ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADM13307-5ARZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADM13307-5ARZ Details

  • Manufacturer Part Number:

    ADM13307-5ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM13307-5ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM13307-5ARZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM13307-5ARZ requires a single 5V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the input voltage has reached 4.5V, and to power down the device before the input voltage falls below 4.5V.
  • The ADM13307-5ARZ has an operating temperature range of -40°C to 125°C. Temperature affects the device's performance, with increased temperature resulting in increased power consumption and decreased accuracy. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • Common issues with the ADM13307-5ARZ can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout is optimized for noise reduction. Additionally, check for any oscillations or ringing on the output voltage and adjust the output capacitor value accordingly.
  • The ADM13307-5ARZ is sensitive to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines.
