ADM206ARSZ - Analog Devices

Description: Analog Devices ADM206ARSZ, Line Transceiver, EIA-232-E 4-TX 3-RX, 5 V, 24-Pin SSOP

Download ADM206ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

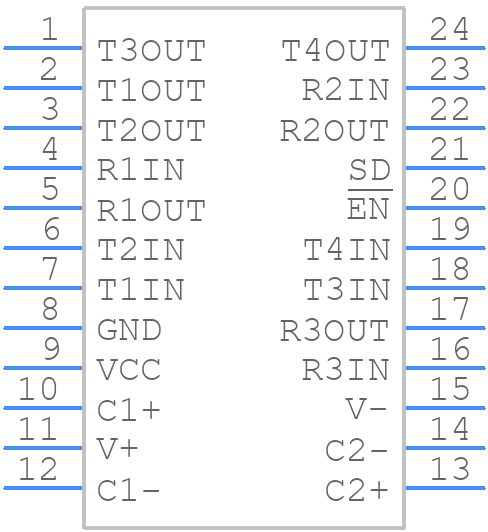

Symbol
ADM206ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM206ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Plastic SSOP
click to zoom
3D Models
ADM206ARSZ - Analog Devices - 3D model - Small Outline Packages - 24-Lead Plastic SSOP
click to zoom

ADM206ARSZ Details

  • Manufacturer Part Number:

    ADM206ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AG, SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.000025 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    5000 ns

  • Width:

    5.3 mm

ADM206ARSZ Frequently Asked Questions (FAQs)

  • The ADM206ARSZ is a high-speed device, and proper layout and placement are crucial to minimize EMI and noise. It is recommended to keep the device close to the power supply, use a solid ground plane, and keep the signal traces short and away from the power traces. Additionally, use a shielded cable for the RS-232 interface and keep it away from other cables.
  • To ensure reliable operation of the ADM206ARSZ in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, consider using a thermal pad or heat sink on the device to dissipate heat.
  • When using the ADM206ARSZ in a system with multiple power domains, it is essential to ensure that the device is powered from a single power domain to avoid latch-up or other reliability issues. Additionally, consider using level shifters or voltage translators to ensure that the signal levels are compatible between different power domains.
  • To troubleshoot issues with the ADM206ARSZ, start by checking the power supply and signal integrity. Verify that the device is receiving the correct power supply voltage and that the signal traces are not noisy or distorted. Use an oscilloscope to monitor the signal waveforms and check for errors. Also, check the device's configuration and settings to ensure that they are correct.
  • When using the ADM206ARSZ in a system with high-speed data transmission, it is essential to ensure that the signal traces are properly terminated, and the signal integrity is maintained. Use a high-speed PCB material, and consider using differential signaling to reduce electromagnetic interference. Additionally, ensure that the device is properly configured for high-speed operation.
