ADM206EARZ - Analog Devices

Description: ADM206EARZ, Multichannel Line Transceiver, EIA-232-E, RS-232, V.28 4-TX 3-RX 3-TRX, 5 V, 24-Pin SOIC W

Download ADM206EARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

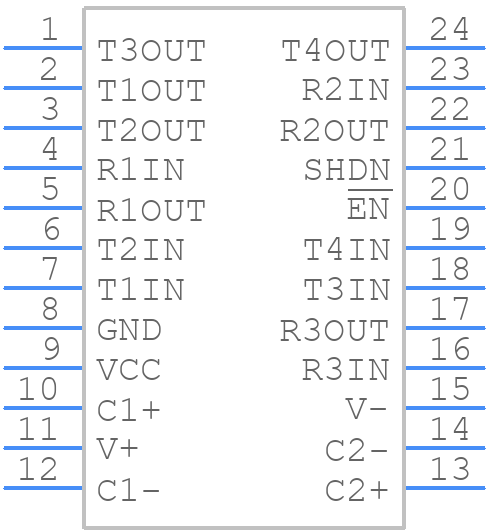

ADM206EARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM206EARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-24)_1
click to zoom
3D Models
ADM206EARZ - Analog Devices - 3D model - Small Outline Packages - (R-24)_1
click to zoom

ADM206EARZ Details

  • Manufacturer Part Number:

    ADM206EARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM206EARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ADM206EARZ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a ferrite bead or a choke in series with the VCC pin to filter out high-frequency noise.
  • To ensure proper termination for RS-232 applications, make sure to connect a 1 kΩ resistor in series with the output of the transmitter (TX) pin and a 10 kΩ resistor in parallel with the input of the receiver (RX) pin. This will help to reduce reflections and improve signal integrity.
  • The maximum cable length supported by the ADM206EARZ for RS-232 communication is approximately 50 feet (15.24 meters) at a data rate of 115.2 kbps. However, this can vary depending on the cable quality, noise environment, and data rate.
  • No, the ADM206EARZ is not designed for multi-point RS-232 applications. It is intended for point-to-point RS-232 communication only. If you need to connect multiple devices, you will need to use a separate transceiver for each device or use a different type of transceiver that supports multi-point communication.
  • To put the ADM206EARZ in shutdown mode, simply pull the SHDN pin low. This will reduce the power consumption to less than 1 μA. When the SHDN pin is high, the device will be in normal operating mode. Note that the shutdown mode is not intended for frequent use, and the device should not be toggled in and out of shutdown mode rapidly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM206EARZ Overview

Use the download button to access the ADM206EARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM20, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
