ADM207EANZ - Analog Devices

Description: EMI/EMC Compliant, ±15kV Protected, 230kBPS, RS-232 Transceiver with 5 Drivers & 3 Receivers 24-Lead Plastic Dual In-Line Package [PDIP]

Download ADM207EANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

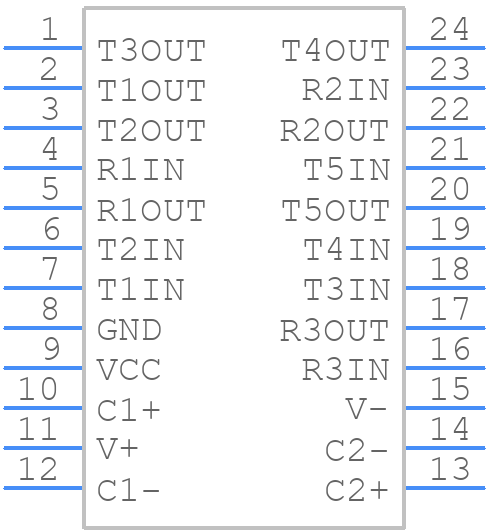

ADM207EANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM207EANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
ADM207EANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

ADM207EANZ Details

  • Manufacturer Part Number:

    ADM207EANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, MS-001AF, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADM207EANZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADM207EANZ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure reliable operation of the ADM207EANZ in high-temperature environments, it's recommended to follow proper thermal design and layout guidelines, such as using a heat sink, keeping the device away from heat sources, and ensuring good airflow. Additionally, it's recommended to derate the device's power consumption and to use a thermal interface material to improve heat transfer.
  • The maximum cable length that can be used with the ADM207EANZ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and noise. For RS-485 applications, a maximum cable length of 4000 feet (1219 meters) is recommended.
  • To troubleshoot common issues with the ADM207EANZ, it's recommended to follow a systematic approach, such as checking the power supply, signal connections, and device configuration. Additionally, it's recommended to use diagnostic tools, such as a logic analyzer or an oscilloscope, to analyze the signal waveforms and identify the root cause of the issue.
  • The ADM207EANZ is a standard RS-485 transceiver and is compatible with other RS-485 transceivers that comply with the EIA/TIA-485 standard. However, it's recommended to check the specific device characteristics, such as the output voltage and current, to ensure compatibility and reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADM207EANZ Overview

Use the download button to access the ADM207EANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM20, or try a keyword search, such as Line Driver or Receivers
