ADM208ARSZ - Analog Devices

Description: Analog Devices ADM208ARSZ, Line Transceiver, EIA/TIA-232 4-TX 4-RX, 5 V, 24-Pin SSOP

Download ADM208ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

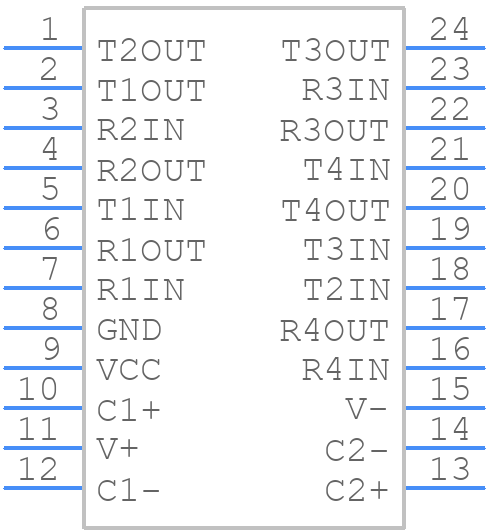

ADM208ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM208ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24 (SSOP)
click to zoom
3D Models
ADM208ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-24 (SSOP)
click to zoom

ADM208ARSZ Details

  • Manufacturer Part Number:

    ADM208ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AG, SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.000025 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5000 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    5000 ns

  • Width:

    5.3 mm

ADM208ARSZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ADM208ARSZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a shielded cable for the RS-232 interface and to keep the cable away from noise sources.
  • To ensure reliable operation of the ADM208ARSZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
  • When using the ADM208ARSZ in a system with multiple power domains, it's essential to ensure that the device is powered from a clean and stable power source. Additionally, the device's power pins should be decoupled from the system's power rails using capacitors to prevent noise and voltage transients from affecting the device's operation.
  • To troubleshoot issues with the ADM208ARSZ, it's recommended to use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Additionally, checking the device's power supply, signal integrity, and PCB layout can help identify the root cause of the issue.
  • When using the ADM208ARSZ in a system with high-speed signals or high-frequency noise, it's essential to ensure that the device is properly shielded and that the signal traces are properly terminated to prevent signal reflections and radiation. Additionally, the device's power supply should be decoupled from the system's power rails to prevent noise and voltage transients from affecting the device's operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM208ARSZ Overview

Use the download button to access the ADM208ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM20, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
