ADM208EARZ - Analog Devices

Description: Analog Devices ADM208EARZ, Line Transceiver, EIA-232-E, RS-232, V.28 4-TX 4-RX 4-TRX, 5 V, 24-Pin SOIC W

Download ADM208EARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

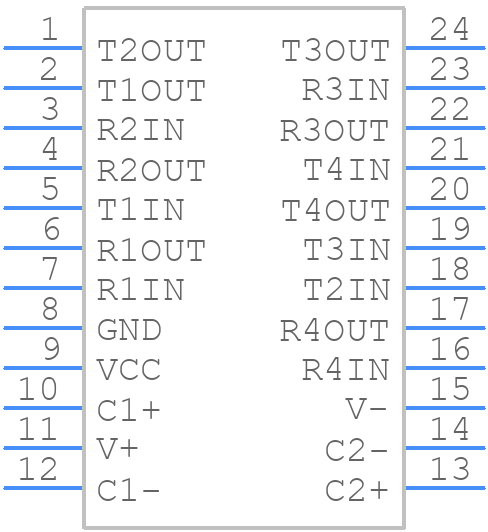

ADM208EARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM208EARZ - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-24N
click to zoom

ADM208EARZ Details

  • Manufacturer Part Number:

    ADM208EARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2000 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM208EARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM208EARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the signal traces away from the edges of the board can help minimize EMI.
  • To ensure proper termination for high-speed signals, use a series resistor (Rs) of 50-75 ohms in series with the transmission line, and a parallel terminator (Rt) of 50-75 ohms to ground at the receiving end. This will help match the impedance and reduce signal reflections.
  • The maximum cable length for the ADM208EARZ depends on the specific application and signal frequency. As a general rule, keep cable lengths under 10 inches (25 cm) for high-speed signals (>100 MHz) to minimize signal attenuation and distortion. For longer cables, consider using repeaters or active termination.
  • To ensure proper power sequencing, apply power to the analog supply (VCC) before the digital supply (VDD). For reset, use a reset signal that is synchronized with the clock signal to prevent metastability issues. Hold the reset signal low for at least 10 clock cycles to ensure a clean reset.
  • The ADM208EARZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pad on the package. Monitor the device temperature and adjust the thermal design accordingly.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADM208EARZ Overview

Use the download button to access the ADM208EARZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM20, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
