ADM211ARZ - Analog Devices

Description: ADM211ARZ, Multichannel Line Transceiver, EIA-232-E, RS-232, V.28 4-TX 5-RX 4-TRX, 5 V, 28-Pin SOIC W

Download ADM211ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

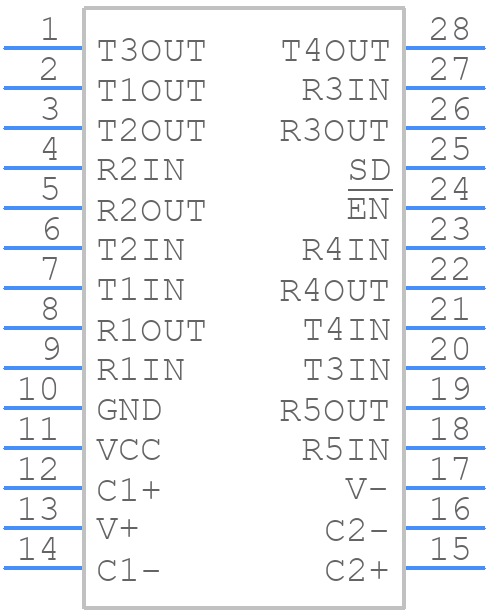

ADM211ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM211ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead SOIC_W
click to zoom
3D Models
ADM211ARZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead SOIC_W
click to zoom

ADM211ARZ Details

  • Manufacturer Part Number:

    ADM211ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AE, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.000025 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    5000 ns

  • Width:

    7.5 mm

ADM211ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM211ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • The ADM211ARZ requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD).
  • The ADM211ARZ can achieve a maximum data rate of 100 kbps. The limitations are due to the device's internal clock frequency and the number of bits per transmission. The device can transmit up to 8 bits per transmission, and the clock frequency is limited to 1 MHz.
  • A reliable reset circuit for the ADM211ARZ can be implemented using a simple RC circuit with a 10 kΩ resistor and a 10 μF capacitor. The reset timing requirements are to hold the reset pin low for at least 100 ns and to ensure that the reset signal is synchronized with the clock signal.
  • The ADM211ARZ has built-in ESD protection, but it's still recommended to take precautions to prevent electrostatic discharge. This can be achieved by using ESD-protective packaging, handling the device with ESD-protective equipment, and using an ESD-protective wrist strap.
