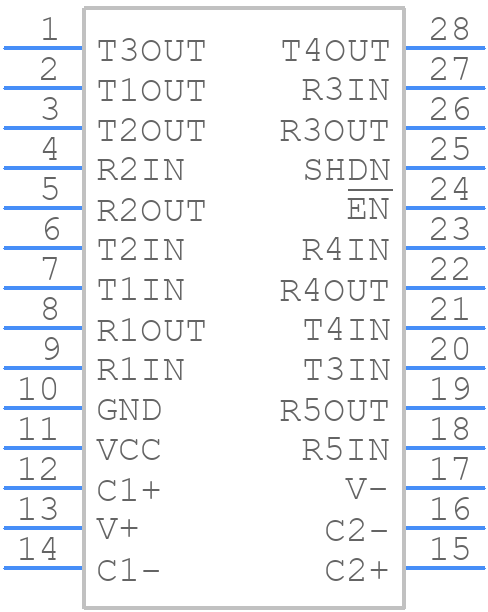

Symbol
ADM211EARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM211EARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
ADM211EARUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

ADM211EARUZ Details

  • Manufacturer Part Number:

    ADM211EARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADM211EARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM211EARUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a shielded enclosure and minimizing the length of the analog signal traces can help reduce EMI.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure to use a high-quality voltage reference. Additionally, consider using an external calibration signal and adjusting the gain and offset settings to optimize performance for your specific application.
  • The ADM211EARUZ has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat sinking, use a thermally conductive PCB material, and avoid blocking airflow around the device. Consider using a heat sink or thermal interface material to reduce thermal resistance.
  • To troubleshoot issues with the ADM211EARUZ, start by checking the power supply and ground connections, ensuring they are clean and stable. Next, verify that the input signals are within the specified range and that the device is properly calibrated. If issues persist, consult the datasheet and application notes for guidance on noise reduction and oscillation prevention techniques.
  • When using the ADM211EARUZ in a high-reliability or safety-critical application, consider implementing redundant systems, using error detection and correction mechanisms, and ensuring that the device is properly calibrated and configured. Additionally, follow relevant industry standards and guidelines, such as IEC 61508 or DO-254, to ensure the device meets the required safety and reliability standards.
