ADM213EARUZ-REEL7 - Analog Devices

Description: RS-232 Interface IC 5V RS-232 TRANSCEIVER W/COMPLIANCE I.C.

Download ADM213EARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

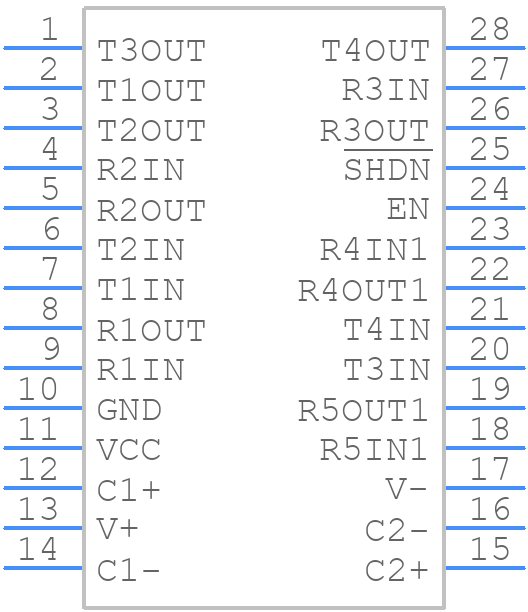

Symbol
ADM213EARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM213EARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP] (RU-28)
click to zoom
3D Models
ADM213EARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP] (RU-28)
click to zoom

ADM213EARUZ-REEL7 Details

  • Manufacturer Part Number:

    ADM213EARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADM213EARUZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • The ADM213EARUZ-REEL7 is rated for operation up to 125°C, but it's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to prevent overheating. Additionally, follow the recommended operating conditions and derating guidelines in the datasheet.
  • The ADM213EARUZ-REEL7 is a high-speed RS-232 transceiver, and its maximum data rate depends on the specific application and cable length. However, it can support data rates up to 1 Mbps over short distances (less than 10 meters) and up to 100 kbps over longer distances (up to 100 meters).
  • To troubleshoot issues with the ADM213EARUZ-REEL7, start by checking the power supply and signal integrity, ensuring that the device is properly powered and that the signals are not corrupted by noise or interference. Use oscilloscopes or logic analyzers to monitor the signals and identify any issues. Also, review the datasheet and application notes for guidance on troubleshooting and debugging.
  • The ADM213EARUZ-REEL7 is a standard RS-232 transceiver, and it should be compatible with other RS-232 devices and transceivers that follow the EIA/TIA-232 standard. However, it's essential to ensure that the devices are configured correctly and that the signal levels and timing are compatible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM213EARUZ-REEL7 Overview

Use the download button to access the ADM213EARUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM21, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
