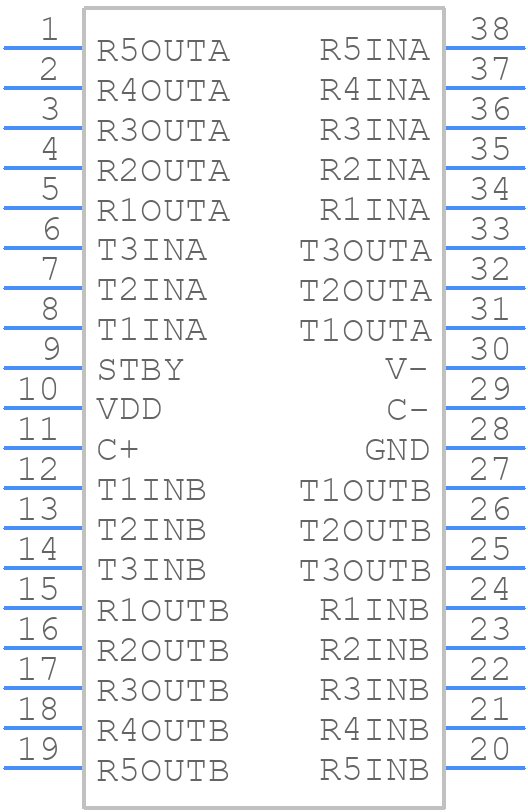

ADM2209EARUZ - Analog Devices

ADM2209EARUZ Details

• Manufacturer Part Number:

  ADM2209EARUZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-38

• Pin Count:

  38

• Manufacturer Package Code:

  RU-38

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  3 TO 5V STANDBY SUPPLY

• Differential Output:

  NO

• Driver Number of Bits:

  6

• High Level Input Current-Max:

  0.000025 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-E; TIA-232-E; V.28

• JESD-30 Code:

  R-PDSO-G38

• JESD-609 Code:

  e3

• Length:

  9.7 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  6

• Number of Terminals:

  38

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Low Current-Max:

  0.0016 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP38,.25,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  2000 ns

• Receiver Number of Bits:

  10

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  2 mA

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  10.8 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  1500 ns

• Width:

  4.4 mm
