ADM222ANZ - Analog Devices

Description: Analog Devices ADM222ANZ, Dual Line Transceiver, EIA-232-E/ RS-232/ V.28 2-TX 2-RX 2-TRX, 5 V, 18-Pin PDIP

Download ADM222ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

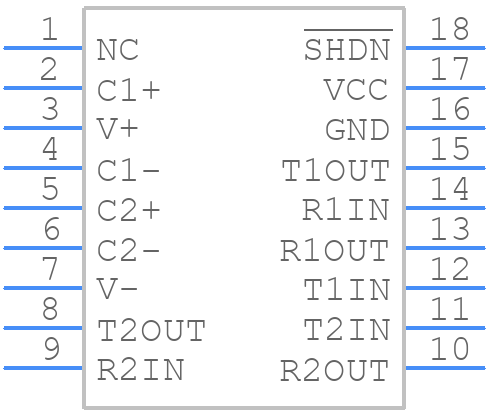

ADM222ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM222ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-18-1
click to zoom
3D Models
ADM222ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-18-1
click to zoom

ADM222ANZ Details

  • Manufacturer Part Number:

    ADM222ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    N-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; V.28

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Length:

    22.48 mm

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0032 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    500 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    3500 ns

  • Width:

    7.62 mm

ADM222ANZ Frequently Asked Questions (FAQs)

  • The ADM222ANZ is a high-frequency device, and proper layout and placement are crucial to minimize EMI and noise. It is recommended to keep the device close to the signal source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The ADM222ANZ requires proper termination to ensure optimal performance. The output should be terminated with a 50Ω load to match the output impedance of the device. Additionally, the input should be terminated with a 50Ω source impedance to match the input impedance of the device. Improper termination can lead to signal reflections and degradation.
  • The ADM222ANZ has an operating temperature range of -40°C to +85°C. However, it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • The ADM222ANZ requires proper power-up and power-down sequencing to prevent damage to the device. It is recommended to power up the device in the following sequence: VCC, then VIN, and then enable the device. When powering down, disable the device, then remove VIN, and finally remove VCC.
  • The ADM222ANZ requires bypass capacitors to filter out noise and ensure stable operation. It is recommended to use a 0.1μF ceramic capacitor and a 10μF tantalum capacitor in parallel, placed close to the device's power pins.
