ADM222ARZ - Analog Devices

Description: Analog Devices ADM222ARZ, Dual Line Transceiver, EIA-232-E/ RS-232/ V.28 2-TX 2-RX 2-TRX, 5 V, 18-Pin SOIC W

Download ADM222ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

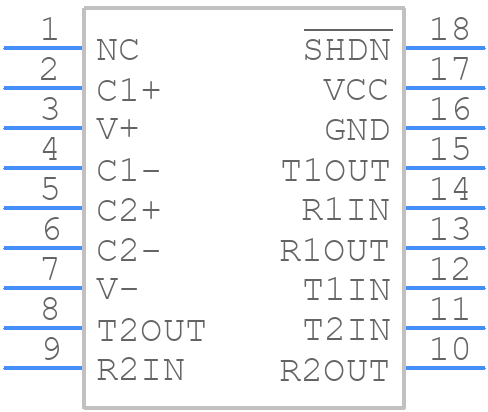

ADM222ARZ - Analog Devices - PCB symbol
