ADM233LANZ - Analog Devices

ADM233LANZ Details

• Manufacturer Part Number:

  ADM233LANZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

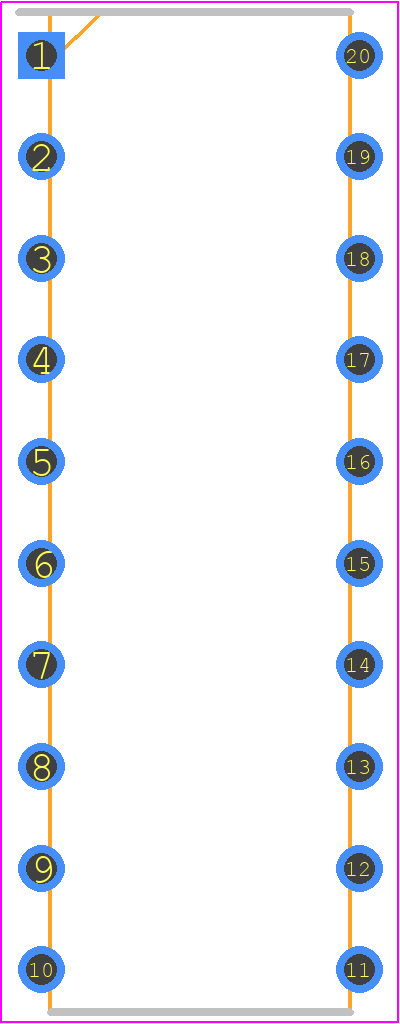

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MO-095AE, DIP-20

• Pin Count:

  20

• Manufacturer Package Code:

  N-20

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  INTERNAL CHARGE PUMP

• Differential Output:

  NO

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.0000025 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-E; V.28

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e3

• Length:

  24.51 mm

• Number of Functions:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  TOTEM-POLE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  2

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
