ADM2463EBRWZ - Analog Devices

Description: 500 kbps, 5.7 kV RMS, Signal Isolated Full Duplex RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2463EBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

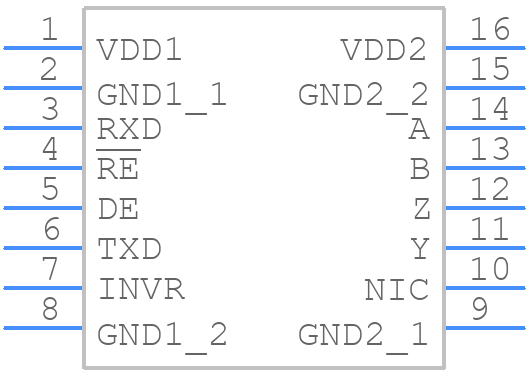

Symbol
ADM2463EBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2463EBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RW-16)*
click to zoom
3D Models
ADM2463EBRWZ - Analog Devices - 3D model - Small Outline Packages - (RW-16)*
click to zoom

ADM2463EBRWZ Details

  • Manufacturer Part Number:

    ADM2463EBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Level Input Current-Max:

    0.000003 A

  • Interface IC Type:

    LINE TRANSCEIVER

ADM2463EBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. A 4-layer PCB with a dedicated ground plane is recommended.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power supply decoupling, and place it as close to the device as possible. Ensure the power supply voltage is within the recommended range (3.3V ± 10%) and use a low-dropout regulator if necessary.
  • The ADM2463EBRWZ can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, cable length, and noise environment.
  • Use a logic analyzer or oscilloscope to monitor the signal quality and timing. Check the signal integrity, clock frequency, and data transmission protocol. Verify that the device is properly configured and that the transmit and receive lines are not swapped.
  • Yes, the ADM2463EBRWZ is designed to support hot-swap and hot-plug applications. However, ensure that the device is properly powered down before removal or insertion, and follow the recommended power-up and power-down sequences.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2463EBRWZ Overview

Use the download button to access the ADM2463EBRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM24, or try a keyword search, such as Line Driver or Receivers
