ADM2482EBRWZ - Analog Devices

Description: ADM2482EBRWZ, Line Transceiver 16Mbit/s Differential, 16-Pin SOIC W

Download ADM2482EBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

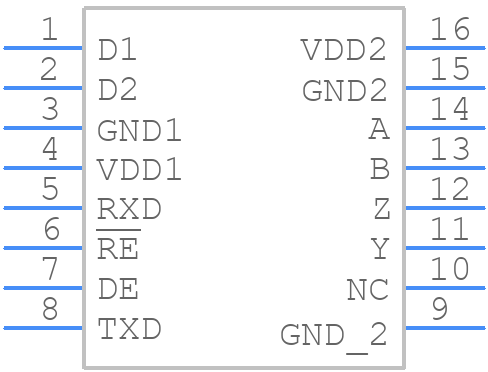

Symbol
ADM2482EBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2482EBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADM2482EBRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADM2482EBRWZ Details

  • Manufacturer Part Number:

    ADM2482EBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    INTEGRATED OSCILLATOR DRIVER FOR EXTERNAL TRANSFORMER

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; ISO 8482E

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    110 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    100 ns

  • Width:

    7.5 mm

ADM2482EBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2482EBRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation barrier. Additionally, using a shielded cable and minimizing the length of the cable can help reduce EMI.
  • To ensure reliable data transmission over long distances, use a shielded cable, maintain a consistent impedance throughout the transmission line, and use a common-mode choke to reduce electromagnetic interference. Additionally, consider using a repeater or a signal conditioner to boost the signal strength.
  • The maximum cable length supported by the ADM2482EBRWZ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters (330 feet) at a data rate of 100 kbps. For longer distances, repeaters or signal conditioners may be necessary.
  • To troubleshoot issues with the ADM2482EBRWZ, start by checking the power supply voltage, ensuring that it is within the recommended range. Then, verify that the device is properly configured and that the cable connections are secure. Use a logic analyzer or oscilloscope to monitor the data transmission and identify any errors. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the ADM2482EBRWZ can be used in a redundant or fault-tolerant system. The device's built-in redundancy features, such as dual transceivers and redundant data transmission, make it suitable for applications that require high reliability and fault tolerance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2482EBRWZ Overview

Use the download button to access the ADM2482EBRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM24, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
