ADM2483BRWZ-REEL - Analog Devices

Description: Digital Isolators 2.5kV Signal Iso 500kbps Half Duplex

Download ADM2483BRWZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

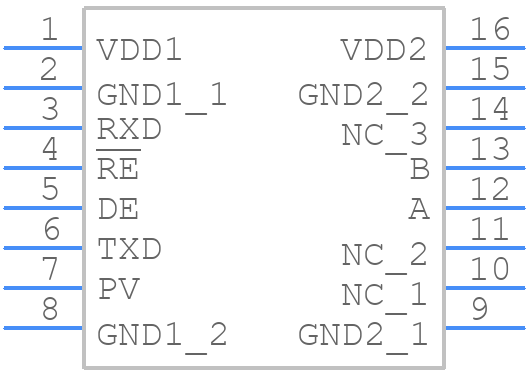

ADM2483BRWZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2483BRWZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADM2483BRWZ-REEL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADM2483BRWZ-REEL Details

  • Manufacturer Part Number:

    ADM2483BRWZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; ISO 8482E

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1050 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    620 ns

  • Width:

    7.5 mm

ADM2483BRWZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2483BRWZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. Additionally, placing the device close to the isolation barrier and using a shielded cable for the bus can help reduce EMI.
  • To ensure reliable communication, use a shielded cable, twisted pair or coaxial cable, and implement error-checking mechanisms such as CRC or checksum in the communication protocol. Additionally, consider using a common-mode choke or ferrite beads to filter out high-frequency noise.
  • The ADM2483BRWZ-REEL has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device. Avoid blocking the airflow around the device and ensure the ambient temperature is within the recommended range.
  • Yes, the ADM2483BRWZ-REEL can be used in a redundant or fault-tolerant system. Implement a redundant communication channel, use a redundant power supply, and consider using a watchdog timer to monitor the device's operation. Additionally, implement a fail-safe mechanism to ensure the system remains operational in case of a device failure.
  • To troubleshoot issues with the ADM2483BRWZ-REEL, use a logic analyzer or oscilloscope to monitor the signal lines, check the power supply and ground connections, and verify the device is properly configured. Common pitfalls to avoid include incorrect pin connections, inadequate power supply decoupling, and insufficient signal termination.
