ADM2484EBRWZ - Analog Devices

Description: ADM2484EBRWZ, Line Transceiver, EIA/TIA-485, ISO 8482, RS-485, RS-422 Differential, 16-Pin SOIC W

Download ADM2484EBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

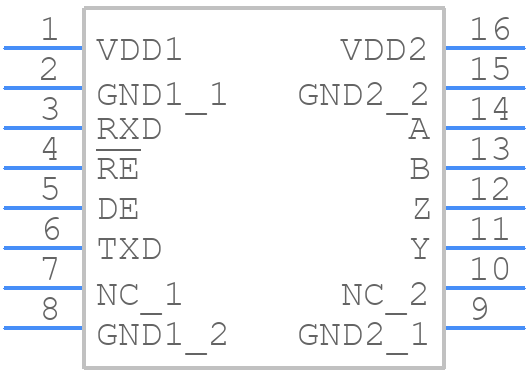

ADM2484EBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2484EBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16W (SOIC)
click to zoom
3D Models
ADM2484EBRWZ - Analog Devices - 3D model - Small Outline Packages - R-16W (SOIC)
click to zoom

ADM2484EBRWZ Details

  • Manufacturer Part Number:

    ADM2484EBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRES 3V TO 3.6V SUPPLY

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; EIA-422; ISO 8482E

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.0015 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    700 ns

  • Width:

    7.5 mm

ADM2484EBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2484EBRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation barrier. Additionally, using a shielded cable and minimizing the length of the cable can help reduce EMI.
  • To ensure reliable data transmission over long distances, use a shielded cable, maintain a consistent impedance throughout the transmission line, and use a common-mode choke to reduce electromagnetic interference. Additionally, consider using a repeater or a fiber optic converter to extend the transmission distance.
  • The maximum cable length supported by the ADM2484EBRWZ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps. For longer distances, consider using a repeater or a fiber optic converter.
  • To troubleshoot issues with the ADM2484EBRWZ, start by checking the power supply voltage, ensuring that it is within the recommended range. Then, verify that the device is properly configured and that the cable connections are secure. Use a logic analyzer or oscilloscope to monitor the data transmission and identify any errors. Consult the datasheet and application notes for additional troubleshooting guidance.
  • Yes, the ADM2484EBRWZ can be used in a redundant or fault-tolerant system. The device's built-in redundancy features, such as dual transceivers and redundant clock domains, make it suitable for applications that require high reliability and fault tolerance. Consult the datasheet and application notes for guidance on implementing redundancy and fault tolerance.
