ADM2486BRWZ - Analog Devices

Description: High Speed, Half-Duplex iCoupler Isolated RS-485 Transceiver

Download ADM2486BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

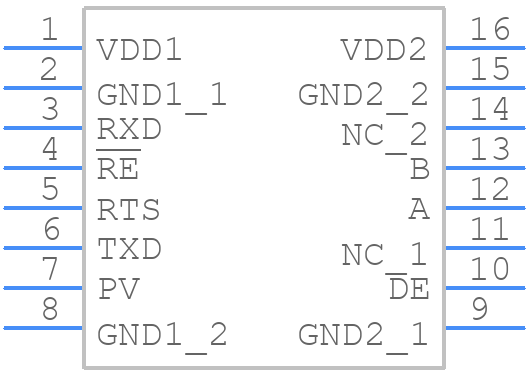

ADM2486BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2486BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16
click to zoom
3D Models
ADM2486BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16
click to zoom

ADM2486BRWZ Details

  • Manufacturer Part Number:

    ADM2486BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; ISO 8482E

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.1 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    55 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    55 ns

  • Width:

    7.5 mm

ADM2486BRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2486BRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation barrier. Additionally, using a shielded cable and minimizing the length of the cable can help reduce EMI.
  • To ensure reliable data transmission over long distances, use a shielded cable, keep the cable length as short as possible, and use a repeater or an isolator if necessary. Also, ensure that the signal is properly terminated and that the receiver is properly configured.
  • The maximum cable length supported by the ADM2486BRWZ depends on the specific application and the type of cable used. However, as a general rule, the maximum cable length is around 100 meters for a twisted-pair cable and 300 meters for a fiber optic cable.
  • To troubleshoot issues with the ADM2486BRWZ, start by checking the power supply and ensuring that the device is properly configured. Then, use a logic analyzer or oscilloscope to check the signal integrity and verify that the data is being transmitted correctly. If the issue persists, check the cable and connections for any damage or faults.
  • The ADM2486BRWZ is rated for operation up to 85°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance by 1°C for every 10°C above 70°C. Additionally, ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
