ADM2561EBRNZ - Analog Devices

Description: ANALOG DEVICES - ADM2561EBRNZ - Transceiver, RS422, RS485, 500 kbps, 1 Driver, 1 Receiver, 3 to 5.5 V, -40 to 105 °C, WSOIC-28

Download ADM2561EBRNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

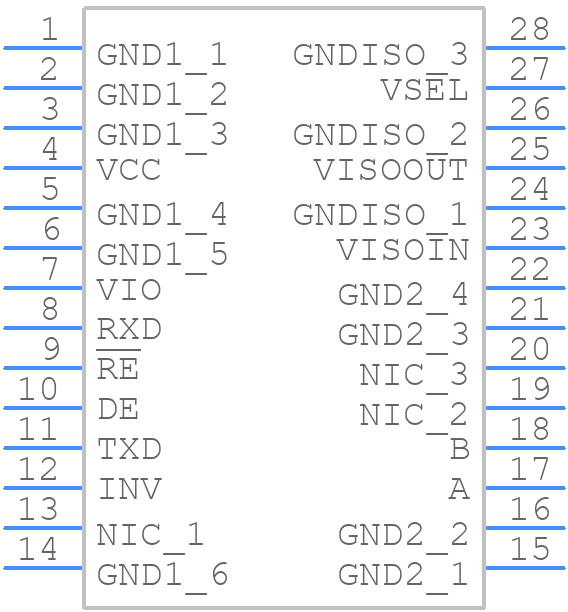

ADM2561EBRNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2561EBRNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead SOIC_W_FP
click to zoom
3D Models
ADM2561EBRNZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead SOIC_W_FP
click to zoom

ADM2561EBRNZ Details

  • Manufacturer Part Number:

    ADM2561EBRNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LOGIC VIO SUPPLY OF 1.7 V TO 5.5 V

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485; TIA-422; EIA-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    51 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    25 ns

  • Width:

    7.5 mm

ADM2561EBRNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2561EBRNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation barrier. Additionally, using a shielded cable for the digital interface and keeping the cable length as short as possible can help minimize EMI.
  • To ensure reliable operation of the ADM2561EBRNZ in high-temperature environments, it is essential to provide adequate heat sinking, ensure good airflow, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, using a thermal interface material and a heat sink with a thermal resistance of less than 10°C/W can help to dissipate heat effectively.
  • When selecting an isolation barrier for the ADM2561EBRNZ, key considerations include the barrier's voltage rating, capacitance, and creepage distance. The barrier should be rated for the maximum working voltage, have a capacitance of less than 10 pF, and a creepage distance of at least 8 mm to ensure reliable operation and safety.
  • To troubleshoot issues with the ADM2561EBRNZ, start by verifying the power supply voltage, checking for proper grounding and isolation, and ensuring that the device is operated within its specified temperature range. Use an oscilloscope to check the digital interface signals and verify that they are within the specified voltage levels. If issues persist, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
  • When using the ADM2561EBRNZ in a safety-critical application, it is essential to follow the safety guidelines and regulations applicable to the specific industry and application. This includes ensuring that the device is used within its specified operating conditions, implementing redundant safety mechanisms, and performing thorough testing and validation to ensure the system's reliability and safety.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2561EBRNZ Overview

Use the download button to access the ADM2561EBRNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM25, or try a keyword search, such as Line Driver or Receivers
