ADM2567EBRNZ-RL7 - Analog Devices

Description: RS422, RS485 Digital Isolator 3000Vrms 4 Channel 25Mbps 250kV/µs CMTI 28-BSSOP (0.295", 7.50mm Width)

Download ADM2567EBRNZ-RL7 Model

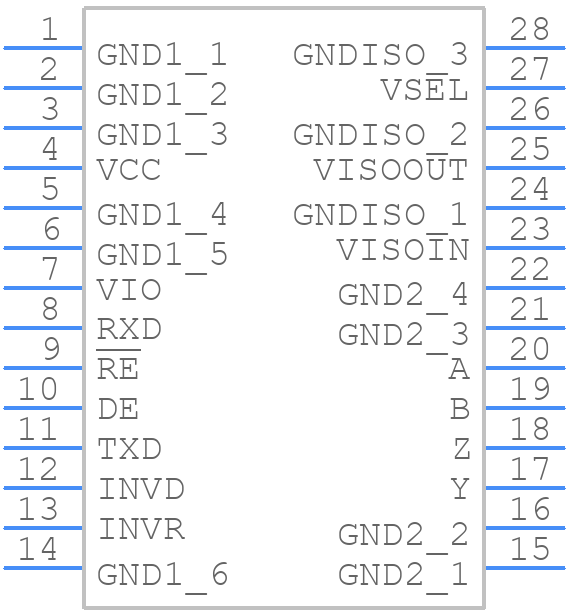

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

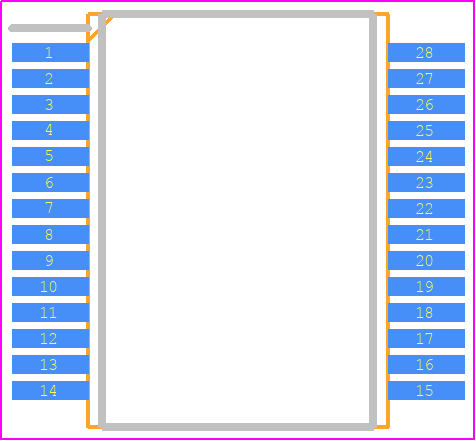

ADM2567EBRNZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2567EBRNZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2567EBRNZ-RL7 Details

  • Manufacturer Part Number:

    ADM2567EBRNZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LOGIC VIO SUPPLY OF 1.7 V TO 5.5 V

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000167 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485; TIA-422; EIA-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    51 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    25 ns

  • Width:

    7.5 mm

ADM2567EBRNZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2567EBRNZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADM2567EBRNZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • When using the ADM2567EBRNZ-RL7 in a system with multiple power domains, it's essential to ensure that the device is powered from a single power domain to avoid any potential issues with power sequencing. Additionally, the device's power supply should be decoupled from the system's power supply to prevent any noise or voltage droop from affecting the device's operation.
  • To troubleshoot issues with the ADM2567EBRNZ-RL7, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check the device's datasheet for any specific troubleshooting guidelines, and use tools such as oscilloscopes or logic analyzers to debug the issue. If the problem persists, contact Analog Devices' technical support for further assistance.
  • When using the ADM2567EBRNZ-RL7 in a system with high-frequency signals, it's essential to ensure that the device's input and output signals are properly filtered and terminated to prevent any signal reflections or ringing. Additionally, the device's power supply should be decoupled from the system's power supply to prevent any noise or voltage droop from affecting the device's operation.
