ADM2587EBRWZ-REEL7 - Analog Devices

Description: 2.5 kV Signal and Power Isolated, ?15 kV ESD Protected, Full/Half Duplex RS-485 Transceiver (500kbps)

Download ADM2587EBRWZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

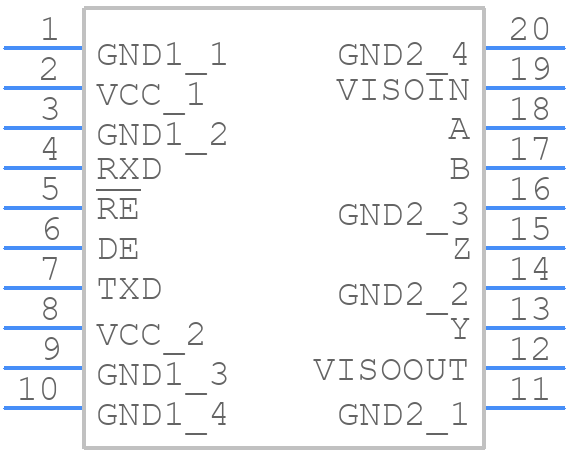

ADM2587EBRWZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2587EBRWZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20 (SOIC)
click to zoom
3D Models
ADM2587EBRWZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RW-20 (SOIC)
click to zoom

ADM2587EBRWZ-REEL7 Details

  • Manufacturer Part Number:

    ADM2587EBRWZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Similar Group:

    LT00100910011017100110011090

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LINE TRANSCEIVER

  • Moisture Sensitivity Level:

    3

  • Output Polarity:

    TRUE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADM2587EBRWZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2587EBRWZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADM2587EBRWZ-REEL7, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins. Additionally, use a 10nF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The ADM2587EBRWZ-REEL7 can support data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, cable length, and noise environment. It's recommended to consult the datasheet and application notes for more information on data rate limitations.
  • To troubleshoot issues with the ADM2587EBRWZ-REEL7, start by checking the power supply and decoupling, then verify the signal integrity and data transmission protocol. Use oscilloscopes and logic analyzers to debug the signal waveforms and data transmission. Consult the datasheet, application notes, and Analog Devices' support resources for more guidance.
  • Yes, the ADM2587EBRWZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. Use a thermal pad or heat sink on the device, and ensure good airflow around the device. Consult the datasheet for more information on thermal management.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2587EBRWZ-REEL7 Overview

Use the download button to access the ADM2587EBRWZ-REEL7 schematic symbol, PCB footprint, and 3D model.
