ADM2687EBRIZ-RL7 - Analog Devices

Description: Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W T/R 5 kV rms Signal and Power Isolated RS-485 Transceiver with ±15 kV ESD Protection

Download ADM2687EBRIZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

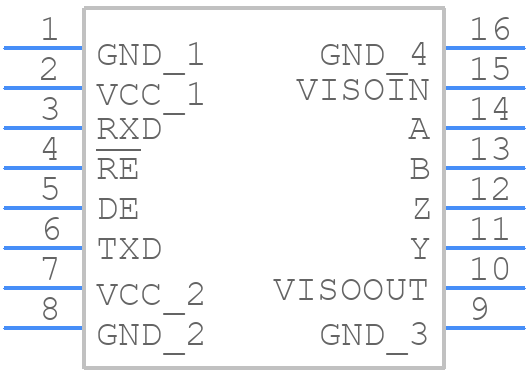

ADM2687EBRIZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2687EBRIZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)-ren1
click to zoom
3D Models
ADM2687EBRIZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)-ren1
click to zoom

ADM2687EBRIZ-RL7 Details

  • Manufacturer Part Number:

    ADM2687EBRIZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; EIA-422; ISO 8482

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.0015 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    110 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    100 ns

  • Width:

    7.5 mm

ADM2687EBRIZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a common mode choke or ferrite bead to filter the power supply lines.
  • To ensure reliable communication, use a reliable clock source, ensure proper signal termination, and use a common mode filter or ferrite bead to reduce EMI. Also, ensure that the digital isolator is properly configured and that the data transmission rate is within the recommended specifications.
  • The maximum cable length supported by the ADM2687EBRIZ-RL7 depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length for a reliable RS-485 communication is around 4000 feet (1219 meters) at a data rate of 10 Mbps.
  • To troubleshoot issues with the digital isolator, check the power supply voltage, ensure proper signal termination, and verify that the clock source is reliable. Also, use an oscilloscope to check the signal integrity and verify that the data transmission rate is within the recommended specifications.
  • The ADM2687EBRIZ-RL7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's specifications according to the temperature derating curve provided in the datasheet.
