ADM2863EBRNZ-RL7 - Analog Devices

Description: 5.7 kV RMS 500kbps Full Duplex Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2863EBRNZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

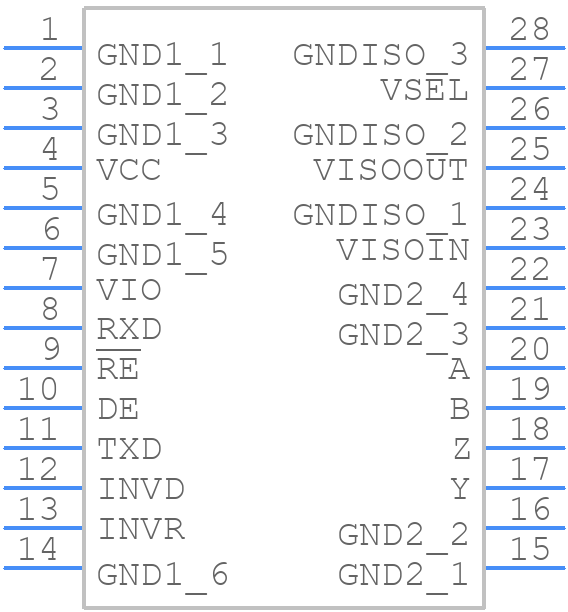

ADM2863EBRNZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2863EBRNZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2863EBRNZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2863EBRNZ-RL7 Details

  • Manufacturer Part Number:

    ADM2863EBRNZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    RS-485; RS-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    400 ns

  • Width:

    7.5 mm

ADM2863EBRNZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2863EBRNZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the transmission lines. It's also recommended to place the device close to the signal sources and to use a common mode choke to filter out high-frequency noise.
  • To ensure reliable operation of the ADM2863EBRNZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • To minimize EMI and RFI issues with the ADM2863EBRNZ-RL7, it's recommended to use a shielded enclosure, keep the device away from sources of electromagnetic interference, and use a common mode choke to filter out high-frequency noise. Additionally, the device should be operated within its specified frequency range of 10 Mbps to 100 Mbps.
  • To troubleshoot issues with the ADM2863EBRNZ-RL7, start by checking the power supply voltage, signal integrity, and transmission line termination. Use an oscilloscope to verify the signal quality and check for any signs of signal degradation. Also, ensure that the device is operated within its specified temperature range and that the PCB layout is optimal.
  • When handling the ADM2863EBRNZ-RL7, it's essential to follow proper safety precautions, such as avoiding static electricity, using an anti-static wrist strap, and handling the device by the body rather than the pins. Additionally, the device should be operated within its specified voltage range of 2.7 V to 5.5 V.
