ADM2863EBRNZ - Analog Devices

Description: 5.7 kV RMS 500kbps Full Duplex Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2863EBRNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

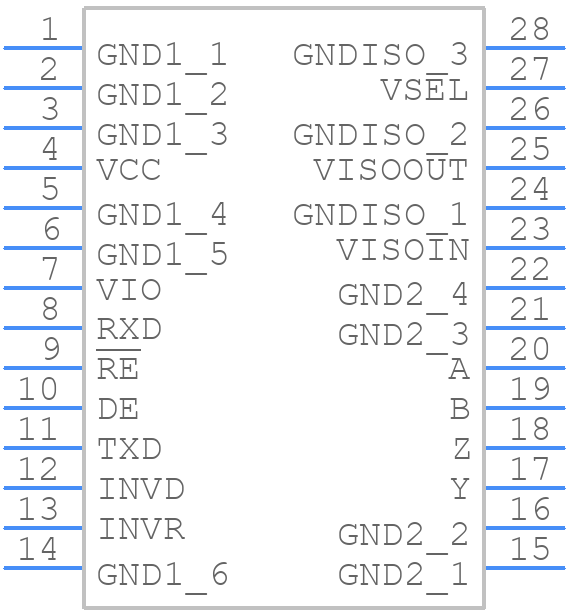

ADM2863EBRNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2863EBRNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2863EBRNZ - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2863EBRNZ Details

  • Manufacturer Part Number:

    ADM2863EBRNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    RS-485; RS-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    400 ns

  • Width:

    7.5 mm

ADM2863EBRNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2863EBRNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the isolation boundary. Additionally, using a shielded cable for the Ethernet connection and keeping the cable away from noisy digital signals can help minimize EMI.
  • To ensure reliable operation of the ADM2863EBRNZ in high-temperature environments, it is essential to provide adequate heat sinking, ensure good airflow, and avoid exceeding the maximum junction temperature of 150°C. Additionally, using a thermal interface material between the device and the heat sink can help improve heat transfer.
  • Not using the recommended capacitors on the VDD and VSS pins can lead to power supply noise, increased EMI, and reduced reliability. The capacitors help to filter out noise and provide a stable power supply to the device, ensuring reliable operation.
  • While the ADM2863EBRNZ is primarily designed for Ethernet applications, it can be used in non-Ethernet applications that require isolated digital signals. However, the device's performance and functionality may vary depending on the specific application, and additional components may be required to ensure reliable operation.
  • To troubleshoot issues with the ADM2863EBRNZ, start by verifying the power supply and clock signals, then check the device's configuration and programming. Use a logic analyzer or oscilloscope to monitor the digital signals, and ensure that the device is properly connected to the isolation boundary. Consult the datasheet and application notes for specific troubleshooting guidelines.
