ADM2865EBRNZ-RL7 - Analog Devices

Description: 5.7 kV RMS Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2865EBRNZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

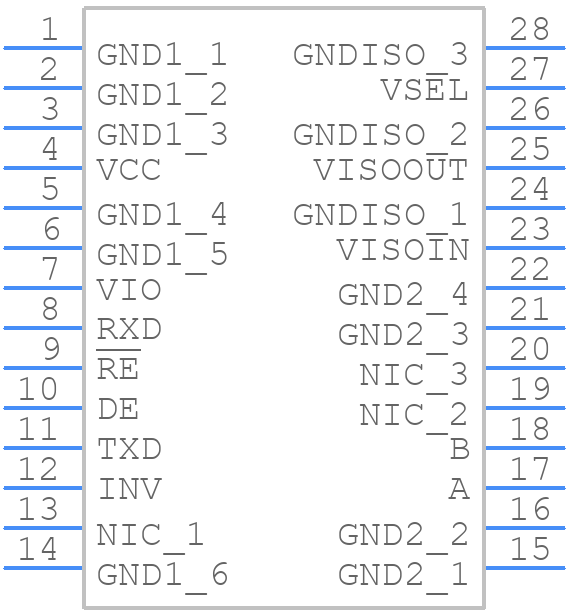

ADM2865EBRNZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2865EBRNZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2865EBRNZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2865EBRNZ-RL7 Details

  • Manufacturer Part Number:

    ADM2865EBRNZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    RS-485; RS-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    25 ns

  • Width:

    7.5 mm

ADM2865EBRNZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode choke and ferrite beads to filter the power supply lines.
  • Ensure good thermal conductivity by using a heat sink or thermal pad on the exposed pad of the package. Keep the device away from heat sources and ensure good airflow. Derate the power supply voltage and reduce the data rate to minimize power consumption.
  • Use a 100-ohm differential termination resistor at the receiver end and a 50-ohm single-ended termination resistor at the transmitter end. Ensure that the termination resistors are placed close to the receiver and transmitter pins.
  • Use an oscilloscope to check the signal integrity and eye diagram. Verify that the power supply voltage and data rate are within the recommended specifications. Check for signal reflections, crosstalk, and electromagnetic interference (EMI).
  • Power up the device in the following sequence: VCC, VEE, and then the digital power supply. Ensure that the power supply voltage is stable and within the recommended specifications before applying the clock signal.
