ADM2865EBRNZ - Analog Devices

Description: 5.7 kV RMS Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2865EBRNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

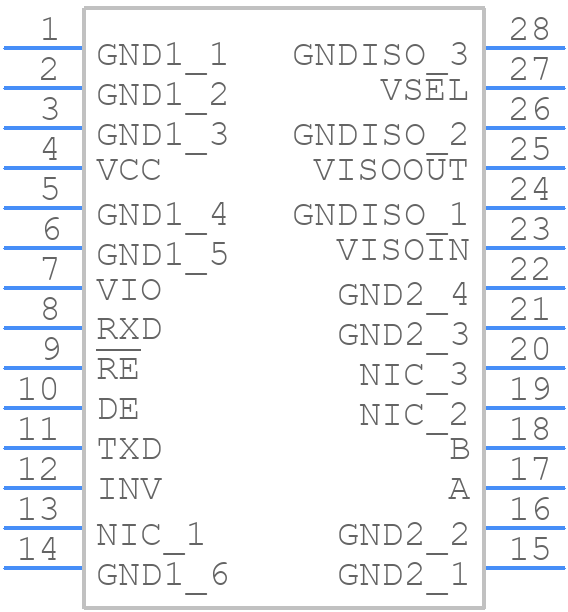

ADM2865EBRNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2865EBRNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADM2865EBRNZ**
click to zoom
3D Models
ADM2865EBRNZ - Analog Devices - 3D model - Small Outline Packages - ADM2865EBRNZ**
click to zoom

ADM2865EBRNZ Details

  • Manufacturer Part Number:

    ADM2865EBRNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    RS-485; RS-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    25 ns

  • Width:

    7.5 mm

ADM2865EBRNZ Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the high-frequency signals away from the analog signals. Also, use a shielded cable for the Ethernet connection to reduce EMI.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
  • The recommended power-up sequence is to power up the 3.3V supply first, followed by the 1.8V supply. During power-down, the sequence should be reversed. This ensures that the internal voltage regulators are powered up and down correctly.
  • To troubleshoot issues with the ADM2865EBRNZ, check the basics first, such as ensuring that the power supplies are stable and within the recommended range. Then, use a logic analyzer or oscilloscope to check the signal integrity and timing. Also, check the Ethernet cable and connector for any damage or issues.
  • The recommended termination resistors for the ADM2865EBRNZ are 50Ω for the Ethernet transmit and receive pairs. These resistors should be placed as close to the device as possible to minimize signal reflections.
