ADM2914-1ARQZ - Analog Devices

Description: ADM2914-1ARQZ, Voltage Supervisor 4-channel 0.492V Quad UV/OV Positive/Negative 16-Pin QSOP

Download ADM2914-1ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

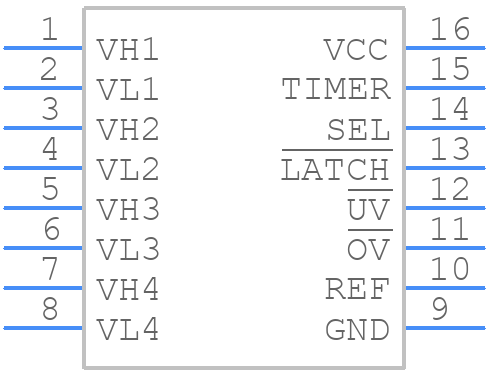

ADM2914-1ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2914-1ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)
click to zoom
3D Models
ADM2914-1ARQZ - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)
click to zoom

ADM2914-1ARQZ Details

  • Manufacturer Part Number:

    ADM2914-1ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

ADM2914-1ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2914-1ARQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the device away from high-frequency sources can help minimize EMI and noise.
  • To ensure proper powering and decoupling of the ADM2914-1ARQZ, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF capacitor between the VCC and GND pins. Additionally, use a 0.1uF capacitor between the VCC and AVCC pins for analog power supply decoupling.
  • The ADM2914-1ARQZ can achieve a maximum data transfer rate of up to 100 Mbps, depending on the specific application and system design.
  • The ADM2914-1ARQZ can be configured for half-duplex or full-duplex operation by setting the appropriate mode pins (MODE0 and MODE1) and using the correct transmit and receive enable signals (TXEN and RXEN). Refer to the datasheet for specific pin configurations and signal timings.
  • The ADM2914-1ARQZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance.
